Quick Specs
| Category | 19″ Server Rack Cabinet, floor standing |
| U capacity | 27U / 32U / 37U / 42U / 47U |
| Dimensions (W×D×H) | 600–800 × 600–1000 × 1400–2200 mm |
| Frame material | SPCC quality cold rolled steel |
| Static loading | 800 kg – 1000 kg |
| Compliance | ANSI/EIA RS-310-D ETSI |
| Body colour | RAL9004, RAL9005, RAL7035 |
The Heizka Server Rack Cabinet is a 19-inch floor-standing enclosure built for data centres, server rooms and enterprise network closets that demand serious load capacity and clean cable management. Every server rack cabinet in the range uses a classic disassembled structure, so it ships flat-packed and is easy to move through doorways and lifts before being assembled on site.
Available in five heights — 27U, 32U, 37U, 42U and 47U — and in widths of 600 mm or 800 mm with depths up to 1000 mm, this server rack cabinet accommodates everything from a compact branch-office stack to a fully populated rack of switches, patch panels and rack-mount servers. A static loading rating of 800 kg to 1000 kg means the cabinet carries a full equipment load without frame deflection.

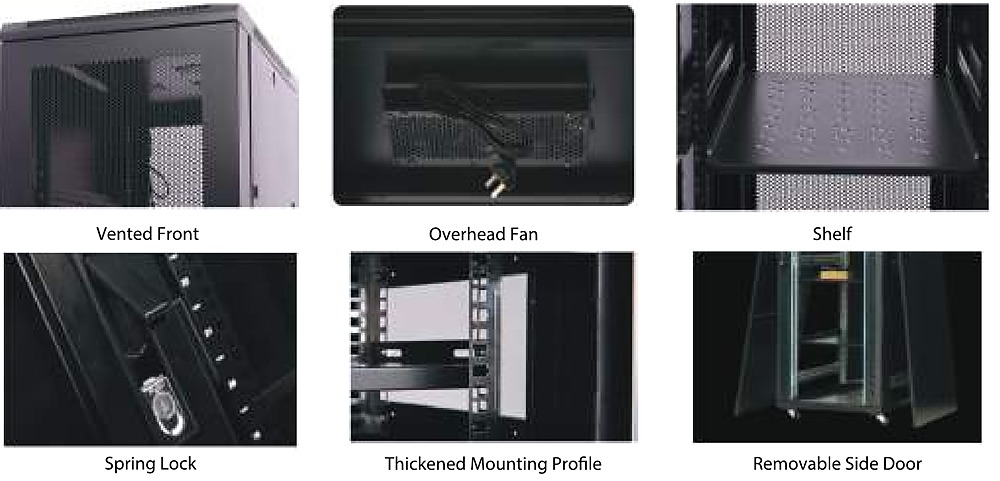

Features
- ✓Classic model with disassembled structure — flat packing keeps shipping cost and transport damage down
- ✓Tempered glass or perforated steel front door with advanced spring lock; steel rear door with spring lock
- ✓Removable side panels with latches for fast installation, with optional lock
- ✓Cable entry on both top and bottom for tidy, flexible cable routing
- ✓Adjustable feet and castors supplied together — roll it into place, then level and lock it down
- ✓S-shaped mounting profile, free to move forward and back to suit deep or shallow equipment
- ✓SPCC quality cold rolled steel with 2.0 mm mounting profile for a rigid, long-life frame
- ✓Wide range of optional accessories: overhead fan units, shelves, PDUs and cable managers
Standard Compliance
ANSI/EIA RS-310-D IEC 297-2 DIN 41491 PART 1 DIN 41491 PART 7 ETSI
Rack unit geometry follows the 19-inch standard defined by IEC 297-2 and the ETSI equipment-practice specifications.
Ordering Information
Item numbers follow the pattern HER…XY, where X is the front door option (S = perforated steel, G = tempered glass) and Y is the rear door option (1 = 1 door, 2 = 2 doors).
| Item # | U Capacity | W (mm) | D (mm) | H (mm) |
|---|---|---|---|---|
| HER2766XY | 27U | 600 | 600 | 1400 |
| HER2768XY | 27U | 600 | 800 | 1400 |
| HER3266XY | 32U | 600 | 600 | 1600 |
| HER3268XY | 32U | 600 | 800 | 1600 |
| HER3261XY | 32U | 600 | 1000 | 1600 |
| HER3288XY | 32U | 800 | 800 | 1600 |
| HER3281XY | 32U | 800 | 1000 | 1600 |
| HER3766XY | 37U | 600 | 600 | 1800 |
| HER3768XY | 37U | 600 | 800 | 1800 |
| HER3761XY | 37U | 600 | 1000 | 1800 |
| HER4266XY | 42U | 600 | 600 | 2000 |
| HER4268XY | 42U | 600 | 800 | 2000 |
| HER4261XY | 42U | 600 | 1000 | 2000 |
| HER4288XY | 42U | 800 | 800 | 2000 |
| HER4281XY | 42U | 800 | 1000 | 2000 |
| HER4766XY | 47U | 600 | 600 | 2200 |
| HER4768XY | 47U | 600 | 800 | 2200 |
| HER4761XY | 47U | 600 | 1000 | 2200 |
| HER4788XY | 47U | 800 | 800 | 2200 |
| HER4781XY | 47U | 800 | 1000 | 2200 |
Technical Specifications
Construction & Materials
| Structure | Classic model, disassembled structure, flat packing |
| Frame material | SPCC quality cold rolled steel |
| Mounting profile thickness | 2.0 mm (other parts: 1.0–1.2 mm) |
| Mounting profile type | S-shaped, free to move forward and back |
| Front door | Perforated steel (S) or tempered glass (G), advanced spring lock |
| Rear door | Steel door with spring lock — 1 door or 2 doors |
| Side panel | Removable with latches, optional lock |
| Cable entry | Top and bottom |
| Base | Adjustable feet and castors available simultaneously |
| Body colour | RAL9004, RAL9005, RAL7035 |
Dimensional & Mechanical Data
| Rack standard | 19-inch equipment mounting |
| U capacity | 27U, 32U, 37U, 42U, 47U |
| Width (W) | 600 mm / 800 mm |
| Depth (D) | 600 mm / 800 mm / 1000 mm |
| Height (H) | 1400 / 1600 / 1800 / 2000 / 2200 mm |
| Static loading | 800 kg – 1000 kg |
| Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 PART 1, DIN 41491 PART 7, ETSI |
| Optional accessories | Overhead fan unit, shelf, PDU, cable manager, blanking panels |
Server Rack Cabinet vs W-Type vs T-Type Wall Mount — Which One Do You Need?
| Feature | Server Rack Cabinet | W Type Wall Mount Cabinet | T Type Wall Mount Cabinet |
|---|---|---|---|
| Example Item # | HER4266XY | HER0654W | HER0664T |
| Installation | Floor standing | Wall mounted | Wall mounted |
| U capacity | 27U / 32U / 37U / 42U / 47U | 4U / 6U / 9U / 12U | 4U / 6U / 9U / 12U / 15U |
| Width (mm) | 600 / 800 | 530 | 600 |
| Depth (mm) | 600 / 800 / 1000 | 400 | 450 / 600 |
| Height (mm) | 1400 – 2200 | 240 / 300 / 450 / 600 | 280 / 350 / 500 / 650 / 750 |
| Mounting profile | 2.0 mm (others 1.0–1.2 mm), S-shaped | 1.0–1.5 mm (others 0.6–0.8 mm), L-shaped | 1.5 mm (others 0.8–1.0 mm), L-shaped |
| Static loading | 800 kg – 1000 kg | 30 kg – 60 kg | 30 kg – 60 kg |
| Front door | Perforated steel or tempered glass | 5 mm tempered glass, 180°+ opening | 5 mm tempered glass, 180°+ opening |
| Best for | Data centres, server rooms, full equipment stacks | Slim corridors and shallow wall spaces | Deeper wall-mounted switches and NVRs |
Frequently Asked Questions
Which U size of server rack cabinet should I choose?
Count the rack units your equipment needs today, then add 20–30% for growth and airflow. A 27U or 32U server rack cabinet suits branch offices and small server rooms; 42U is the data-centre workhorse; 47U maximises density where ceiling height allows.
Should I order the perforated steel (S) or tempered glass (G) front door?
Choose the perforated steel door when the cabinet holds heat-generating servers, because it maximises passive airflow through the front of the enclosure. The tempered glass door is preferred for network and AV cabinets in visible areas where appearance and dust control matter more than raw ventilation.
How much weight can the server rack cabinet carry?
Static loading is rated at 800 kg to 1000 kg depending on model, supported by a 2.0 mm S-shaped mounting profile in SPCC quality cold rolled steel. That is ample for a full rack of servers, UPS units and switches.
Is the cabinet compatible with standard 19-inch equipment?
Yes. It complies with ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 PART 1 and PART 7 and ETSI, so any standard 19-inch server, switch or CAT6 structured cabling patch panel mounts directly onto the profile.
Can I move the cabinet after installation?
Yes. Adjustable feet and castors ship together, so you can roll the server rack cabinet into position and then lower the feet to level and immobilise it. Removable side panels and a disassembled frame also make relocation straightforward.
What accessories are available?
Optional accessories include overhead fan units, fixed and sliding shelves, PDUs, horizontal and vertical cable managers and blanking panels — all designed to fit the same 19-inch mounting profile.
Packaging & Delivery
Every Heizka server rack cabinet is supplied as a disassembled, flat-packed kit — frame, doors, side panels, mounting profiles and hardware are packed together and assembled on site. Flat packing lowers freight volume, protects the powder-coated finish in transit and lets the cabinet pass through standard doorways and service lifts before assembly. Doors, side panels and accessories are available separately as spare parts.
