Quick Specs
| Category | US Type Faceplate, 1 port |
| Item number | HEA14701 |
| Front plate type | US Type |
| Plate dimensions | 14*70 mm |
| Ports | 1 port available |
| Compatibility | All standard RJ45 keystone jacks |

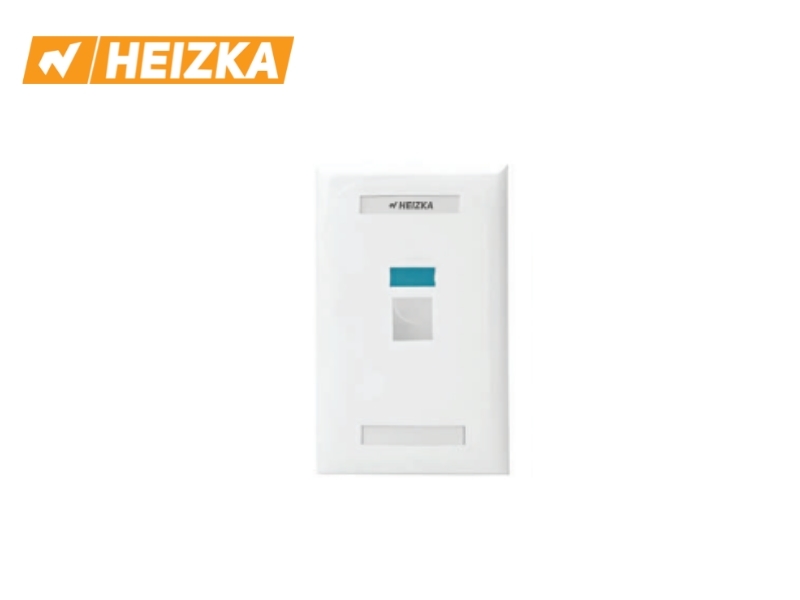

The Heizka US type faceplate HEA14701 is the narrow, 14*70 mm front plate used where an outlet has to sit inside a US style back box or a modular wall trunking aperture rather than a square European pattress. It is supplied in the 1 port configuration and is fully equipped for all standard RJ45 keystone jacks, so it takes the Heizka HEAKJU6W CAT6 keystone jack without an adaptor.
The front plate carries white paper and a label holder for identification, which is what lets an outlet be tied back to a patch panel port and a test result. On a project of any size that label is the difference between tracing a circuit in seconds and tracing it with a toner. Installation is quick and easy: the jack clips into the aperture from behind and the plate fixes to the box with the standard screw centres.
Features
- HEA14701 US Faceplate, 1 port
- Front plate is US Type with dimensions of 14*70 mm
- Available in 1 port
- Fully equipped for all standard RJ45 keystone jacks
- Front plate has white paper and a label holder for identification
- Quick and easy installation
Standard Compliance
Heizka accessories are built to the same structured cabling references that govern the rest of the channel: ISO/IEC 11801 for generic customer-premises cabling and the ANSI/TIA-568 series for commercial building telecommunications cabling. Components are RoHS compliant, and selected items carry UL recognition. Installed and certified as a complete Heizka channel, the link qualifies for the Heizka extended system warranty.
Ordering Information
| Item number | Description | Plate size | Ports |
| HEA14701 | Heizka US Type faceplate with label holder | 14*70 mm | 1 |
The US type faceplate is ordered separately from the jack it houses. A complete outlet position is one HEA14701 plus one keystone jack; specify the jack category — CAT6 or above — from the class of the horizontal cable being terminated.
Choosing Between the US Type Faceplate and the 86 x 86 mm Faceplate
| Consideration | HEA14701 (US Type) | HEA8601 (86 x 86 mm) |
| Plate dimensions | 14*70 mm | 86 (L) x 86 (W) mm, 10.2 mm thick |
| Typical back box | US style box and modular trunking apertures | Square 86 mm pattress, the common pattern in much of Asia and Europe |
| Ports | 1 port available | 1 port available |
| Jack compatibility | All standard RJ45 keystone jacks | RJ45 keystone jacks and fiber optic connectors |
| Identification | White paper and label holder | Convenient and clear marking |
US Type Faceplate Installation Notes
Decide the faceplate pattern at design stage rather than on site, because the back box that gets built into the wall is what fixes the choice. Leave a short service loop of horizontal cable in the box so the jack can be re-terminated later without pulling slack from the containment. Fill the label holder as the outlet is terminated, using the same identifier that appears on the patch panel port and on the certification report.
Where a floor mixes trunking runs with masonry walls, the US type faceplate normally serves the trunking and modular positions while the square plate serves the wall boxes. Agreeing that split before first fix keeps the outlet schedule clean and stops two plate patterns being ordered for the same position. Keep a small stock of the US type faceplate on site for the positions that inevitably move during fit-out, and record the plate type against each outlet in the schedule so a later refit does not have to be surveyed from scratch.
⬇ Download Catalogue / Datasheet (PDF)
Heizka Structured Cabling Catalogue — searchable PDF, no registration required. More files on the Resource page.
Frequently Asked Questions
The HEA14701 US type faceplate has a US Type front plate with dimensions of 14*70 mm, the narrow rectangular pattern rather than the square 86 x 86 mm plate.
It is available in the 1 port configuration, so one faceplate houses one keystone jack.
It is fully equipped for all standard RJ45 keystone jacks, including the Heizka HEAKJU6W CAT6 unshielded jack, so no adaptor plate is needed.
No. The US type faceplate and the keystone jack are separate item numbers, which is what lets the same plate be used with different cable categories on the same project.
The front plate has white paper and a label holder for identification. Use the same identifier on the outlet, the patch panel port and the test report so the three always agree.
Packaging & Delivery
Each Heizka US type faceplate is packed by item number with the plate type and port count marked on the label, so the correct part can be picked, verified and re-ordered without opening the pack. Bulk carton counts are available for work-area roll-outs.
