Quick Specs
| Category | Horizontal Cable Manager, 24 slots |
| Item number | HEAMMM1 |
| Mounting | 19-inch rack and cabinet mounting brackets |
| Construction | Slotted body with snap-on front cover |
| Finish | Black |
| Typical use | Patch panel and switch cable routing in racks and cabinets |

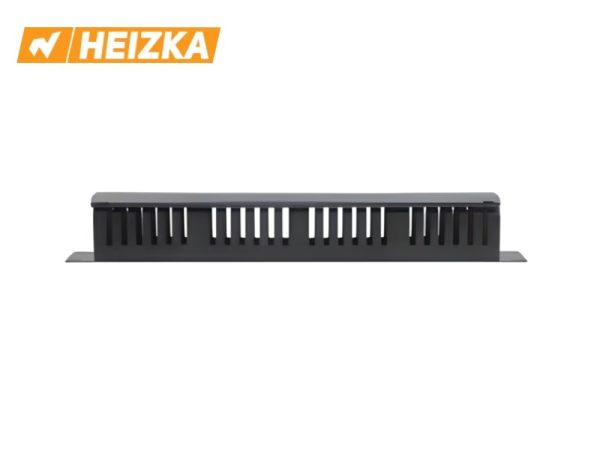

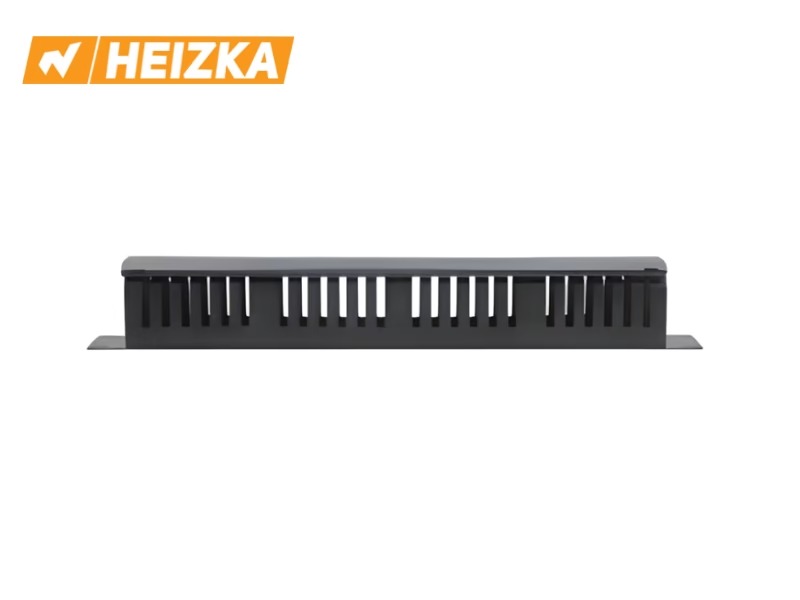

The Heizka 24-port cable manager HEAMMM1 is the horizontal tidying bar that sits directly above or below a patch panel and turns a loose bundle of patch cords into 24 separate, individually routed paths. It is one of the least expensive parts in a rack build and one of the most consequential, because it is what keeps bend radius, cord length and airflow under control for the entire service life of the installation.
Every slot in the body accepts one patch cord and guides it out of the front of the rack, so cords leave the panel in a fixed order instead of crossing over one another. The snap-on cover closes over the routed cords to hide them from view and to stop a cord being pulled sideways when a neighbouring port is re-patched. Mounting brackets are drilled for the standard 19-inch rack profile, so the 24-port cable manager installs in any Heizka rack cabinet or open frame without additional hardware.
Features
- 24 individual routing slots — one per port on a 24-port patch panel
- Snap-on front cover conceals routed cords and holds them in place
- Mounting brackets drilled for 19-inch racks, cabinets and open frames
- Slot walls are radiused so cords are not pinched against a sharp edge
- Black finish matches Heizka patch panels and rack cabinets
- Item number HEAMMM1 — single ordering code, no variants to specify
Standard Compliance
Heizka accessories are built to the same structured cabling references that govern the rest of the channel: ISO/IEC 11801 for generic customer-premises cabling and the ANSI/TIA-568 series for commercial building telecommunications cabling. Components are RoHS compliant, and selected items carry UL recognition. Installed and certified as a complete Heizka channel, the link qualifies for the Heizka extended system warranty.
Ordering Information
| Item number | Description | Ports |
| HEAMMM1 | Heizka horizontal cable manager with front cover | 24 |
The 24-port cable manager is ordered as a single item number. Pair one HEAMMM1 with each 24-port copper patch panel, or two per 48-port panel, when specifying a full rack elevation.
Why a 24-Port Cable Manager Belongs on Every Patch Panel
| Without a cable manager | With HEAMMM1 |
| Patch cords cross the panel face and hide port labels | Each cord leaves through its own slot, labels stay readable |
| Cords are pulled tight against the panel edge, stressing the bend radius | Radiused slot walls hold the cord clear of any sharp edge |
| Re-patching one port disturbs the cords either side of it | Cords are separated, so a single port can be changed in isolation |
| Bundles block the front of the rack and restrict airflow | Routed cords sit behind the cover, leaving the rack face clear |
| Moves, adds and changes get slower every year | The rack stays as maintainable in year ten as on handover day |
24-Port Cable Manager Installation Notes
Fit the HEAMMM1 in the rack unit immediately below the patch panel it serves, then dress each cord down from its port into the matching slot before closing the cover. Keeping the cord order identical to the port order means a technician can trace any circuit by eye. Leave the cover off until the panel has been fully patched and tested, then close it as the final step of the rack build.
Specify one 24-port cable manager for every 24 ports of patch panel in the rack elevation and the quantity takes care of itself: a 48-port panel needs two, a full 42U rack of six 24-port panels needs six. Buying the 24-port cable manager at the same time as the panels, rather than as an afterthought, is what keeps the rack build to a single visit.
⬇ Download Catalogue / Datasheet (PDF)
Heizka Structured Cabling Catalogue — searchable PDF, no registration required. More files on the Resource page.
How Many Cable Managers Does a Rack Need?
A common layout places one horizontal cable manager under each 24-port patch panel, and one under each switch, so every row of ports has its own place for cords. The HEAMMM1 has 24 slots, which matches one 24-port panel row slot for slot.
| Example rack | Patch panels | Switches | HEAMMM1 (one per row) |
|---|---|---|---|
| 48 user outlets | 2 × 24-port | 1 × 48-port | 3 |
| 96 user outlets | 4 × 24-port | 2 × 48-port | 6 |
These are planning examples, not fixed rules. Some designers place one manager between each panel and its switch instead; either way, decide the layout before ordering so the rack height is right. Check the rack unit height of the manager against your elevation drawing.
Copper and Fibre in the Same Rack
The manager works with any 19-inch equipment, so the same model can serve the copper patch panels and the fibre panels in a mixed rack. Keep fibre cords in their own manager rows where possible; fibre is more sensitive to tight bends and to the weight of copper cords lying on top of it.
Fitting It in a Wall Cabinet
In small wall cabinets every U counts. A 9U or 12U T Type or W Type cabinet typically holds one patch panel, one manager and one switch, with space left for a power strip or small UPS. Plan the elevation before choosing the cabinet size.
Use it with the CAT5E or CAT7A patch cords, or see the Copper Cabling Accessories category.
Frequently Asked Questions
A 24-port cable manager separates and guides patch cords so each one leaves the patch panel through its own slot. That keeps the bend radius controlled, keeps port labels visible and means a single cord can be replaced without disturbing the cords beside it.
It is a horizontal manager that mounts in the 19-inch rack profile directly above or below the panel it serves; allow one manager position in the rack elevation for each patch panel you are dressing.
Yes. The usual practice is to fit two HEAMMM1 units, or one above and one below the panel, so that each group of 24 cords has its own routing path rather than sharing one manager.
The cover is what stops routed cords being pulled sideways during later re-patching, so it should be closed once the panel is patched. It snaps off by hand whenever the cords behind it need to be changed.
Yes. The mounting brackets on the 24-port cable manager follow the standard 19-inch rack profile, so the manager fits any compliant panel; matching it with a Heizka panel simply keeps the finish and slot pitch consistent.
Packaging & Delivery
Each Heizka 24-port cable manager is supplied with its front cover and rack mounting screws, packed by item number so the part can be picked and re-ordered from the label alone. Bulk carton quantities are available for multi-rack roll-outs.
