Quick Specs
| Category | CAT6 Keystone Jack, Unshielded (U/UTP) |
| Item number | HEAKJU6W |
| Colour | White |
| Wiring | T568A / T568B, diagram on the jack base |
| Compliance | RoHS and UL |
| Termination | Speed-control tool for this jack only |

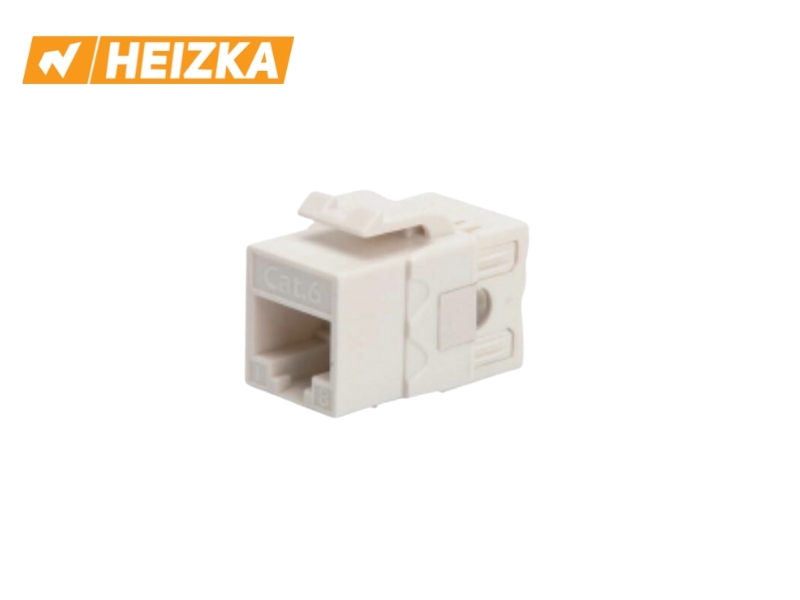

The Heizka CAT6 keystone jack HEAKJU6W is the unshielded, white termination point that turns a horizontal CAT6 cable run into a working RJ45 outlet. Its slim, short body was dimensioned to fit all standard RJ45 faceplates, mounting boxes and blank patch panels, so the same jack can serve the work area outlet, a surface box and the patch field without a second part number.
Electrically, the jack uses a 180-degree design for outstanding performance exceeding Cat6, which is what allows a certified channel to hold margin rather than only just pass. The wiring diagram is printed on the jack base and supports both T568A and T568B, so an installer terminating a run does not need to carry a reference card. A dedicated speed-control tool, intended for this jack only, seats all four pairs in one action for a consistent, repeatable termination.
Features
- HEAKJU6W Heizka CAT6 Keystone Jack, Unshielded, White
- Colour: white
- RoHS and UL compliant
- Slim and short dimensions fit all standard RJ45 faceplates, mounting boxes and blank patch panels
- 180-degree design for outstanding performance exceeding Cat6
- Supports T568A/B with the wiring diagram on the jack base
- Speed-control tool for this jack only
Standard Compliance
Heizka accessories are built to the same structured cabling references that govern the rest of the channel: ISO/IEC 11801 for generic customer-premises cabling and the ANSI/TIA-568 series for commercial building telecommunications cabling. Components are RoHS compliant, and selected items carry UL recognition. Installed and certified as a complete Heizka channel, the link qualifies for the Heizka extended system warranty.
Ordering Information
| Item number | Description | Category | Colour |
| HEAKJU6W | Heizka CAT6 Keystone Jack, Unshielded | CAT6 (U/UTP) | White |
The CAT6 keystone jack ships as a single item number. Order one jack per outlet position, plus the matching Heizka faceplate — the HEA14701 US type faceplate or the HEA8601 86 x 86 mm faceplate — and the patch cords that will serve the outlet.
Where the CAT6 Keystone Jack Fits in the Channel
| Position in the link | Component | Notes |
| Work area outlet | HEAKJU6W in a faceplate | Slim body clears the faceplate back box |
| Consolidation point | HEAKJU6W in a surface mounting box | Same jack, no alternative part number |
| Patch field | HEAKJU6W in a blank patch panel | Lets a panel be populated port by port |
| Patch cords | Heizka CAT6 patch cord | Completes the certified channel end to end |
CAT6 Keystone Jack Termination Notes
Strip only as much jacket as the termination needs and keep the pair twists intact right up to the punch-down, because untwisting is the single most common cause of a marginal NEXT result on an otherwise healthy CAT6 run. Choose T568A or T568B once for the whole project and follow the diagram on the jack base at every outlet; mixing the two schemes within one building is a fault that only shows up during certification. Use the speed-control tool supplied for this jack so every termination is seated to the same depth.
On a project of any size, order the CAT6 keystone jack in the same quantity as the outlets on the drawing plus a small percentage for damage and later moves, adds and changes. Holding a handful of spare jacks on site is far cheaper than stopping a floor because six outlets are short.
⬇ Download Catalogue / Datasheet (PDF)
Heizka Structured Cabling Catalogue — searchable PDF, no registration required. More files on the Resource page.
Frequently Asked Questions
The HEAKJU6W is the unshielded CAT6 keystone jack, intended for U/UTP CAT6 horizontal cable. Use it where the cabling design does not call for a screened channel and no bonding path to the rack is required.
Its slim and short dimensions were chosen to fit all standard RJ45 faceplates, mounting boxes and blank patch panels, so it drops into a standard keystone aperture without an adaptor.
Either — the jack supports both and the diagram is printed on the base. What matters is picking one scheme and using it at every outlet and patch panel in the project so both ends of every link match.
A speed-control tool is supplied for this jack only. It seats all four pairs in one action, which is what makes terminations repeatable across a large installation.
Yes. The same HEAKJU6W CAT6 keystone jack populates a blank keystone patch panel, so a patch field can be built up port by port instead of buying a fully loaded panel.
Yes, the jack is RoHS compliant and UL compliant, which is normally what a specification or a project submittal will ask you to evidence.
Packaging & Delivery
Each Heizka CAT6 keystone jack is packed by item number with the colour and category marked on the label, so the correct part can be picked, verified and re-ordered without opening the pack. Bulk carton counts are available for work-area roll-outs.
