| Series | HEBX Series |
| Product type | ELV Box modules and accessories |
| Fiber Optic Box Modules | HEBX-B301, HEBX-B302, HEBX-B307, HEBX-B308 |
| Information Box Modules | HEBX-A301, HEBX-A304, HEBX-B305, HEBX-C301, HEBX-C302, HEBX-C303 |
| Power / Blank / Fan / Installation | HEBX-E301, HEBX-G301, HEBX-G302, HEBX-FS1, HEBX-020 |
| Total models | 15 |
The Heizka HEBX Series modules and accessories are the internal building blocks of a Heizka ELV box. They cover three groups: Fiber Optic Box Modules for POE routing, Information Box Modules for telephone, data and cable TV distribution, and Power, Blank, Fan and Installation Accessories that complete and protect the assembly. Each module is supplied as a rack-style plate that mounts inside the box, so an installer can configure a home or office ELV box exactly to the number of telephone, data and TV outlets a project needs.
POE routing modules such as the HEBX-B301, HEBX-B302, HEBX-B307 and HEBX-B308 handle WAN or uplink connection plus 4 or 8 10/100Mbps LAN ports with POE. Telephone, data and TV modules split one incoming line to 4, 6 or 7 outputs, and the HEBX-C303 combines phone and TV distribution in a single plate. The HEBX-E301 switching power module, HEBX-G301 and HEBX-G302 blanking plates, HEBX-FS1 fan module and HEBX-020 insertion module complete the accessory range.
Features
- ✓Fiber Optic Box Modules: HEBX-B301, HEBX-B302, HEBX-B307, HEBX-B308 (POE routing modules)

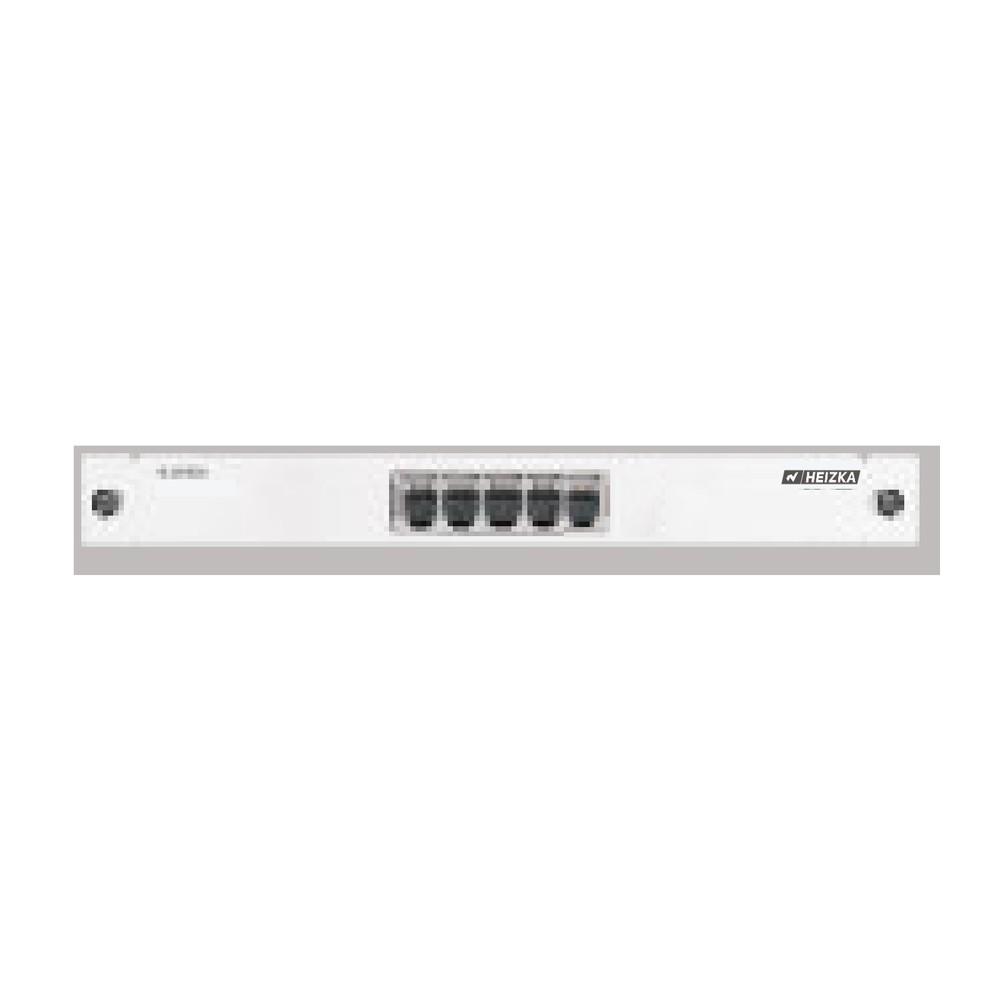

- ✓Information Box Modules: HEBX-A301, HEBX-A304 telephone modules

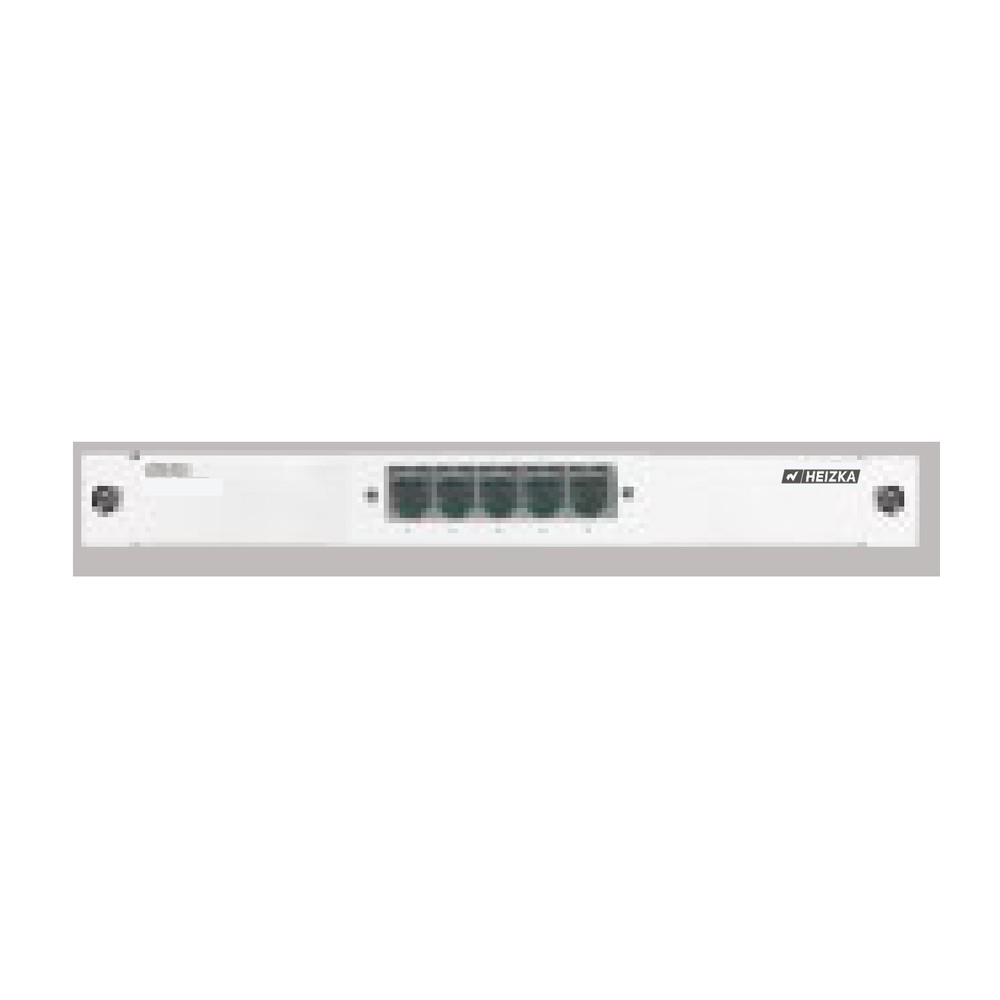

- ✓HEBX-B305 data module, 1 in 4 out computer module (without switch function)

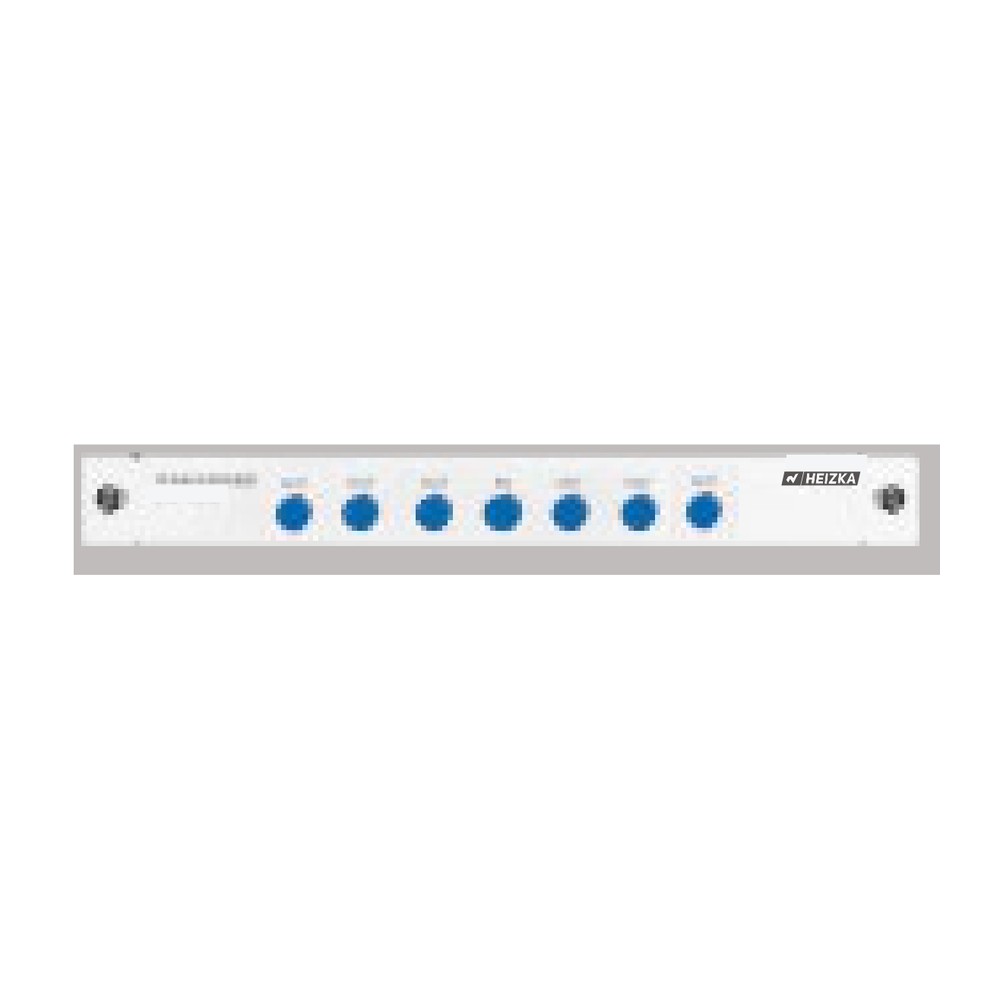

- ✓HEBX-C301 and HEBX-C302 cable TV signal modules, 1 in 4 out and 1 in 6 out

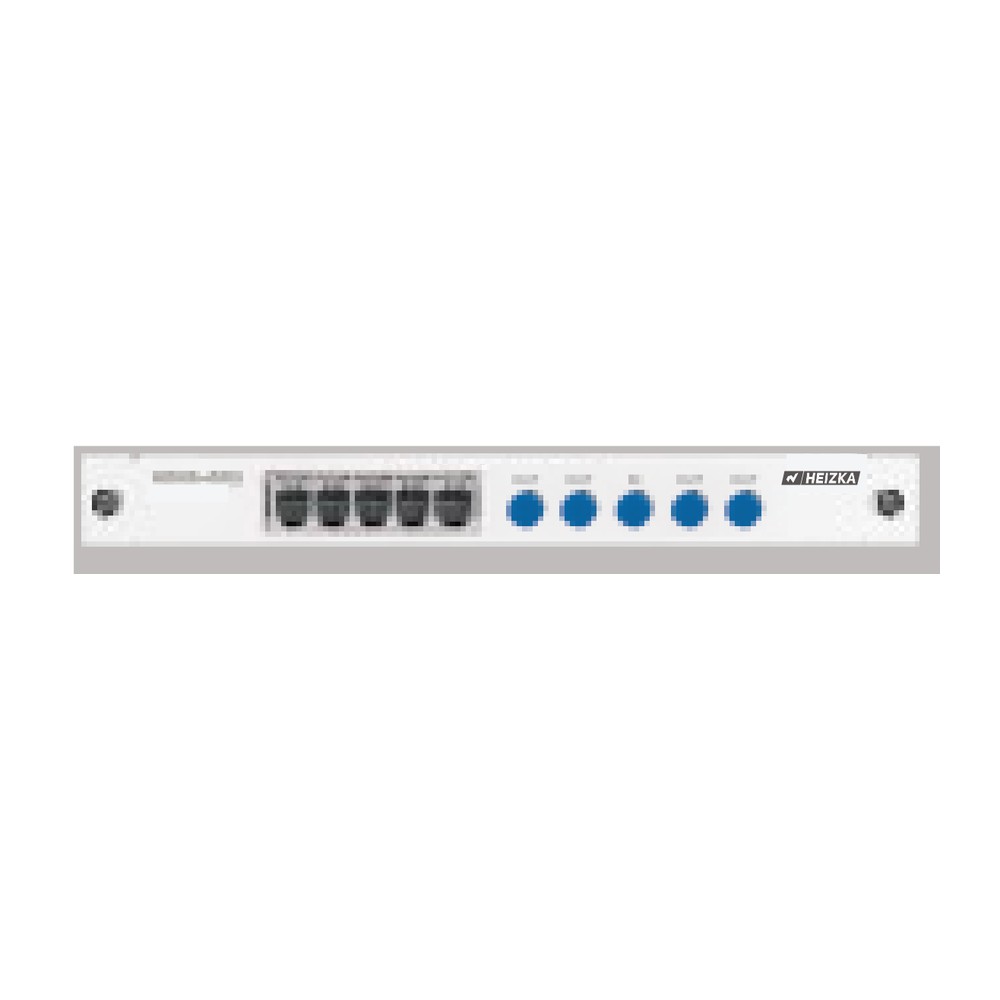

- ✓HEBX-C303 television telephone integrated module, 1 in 4 out phone + 1 in 4 out TV
- ✓HEBX-E301 switching power module, 12V/24V1A power supply (optional)
- ✓HEBX-G301 1U and HEBX-G302 2U fill in the blank modules

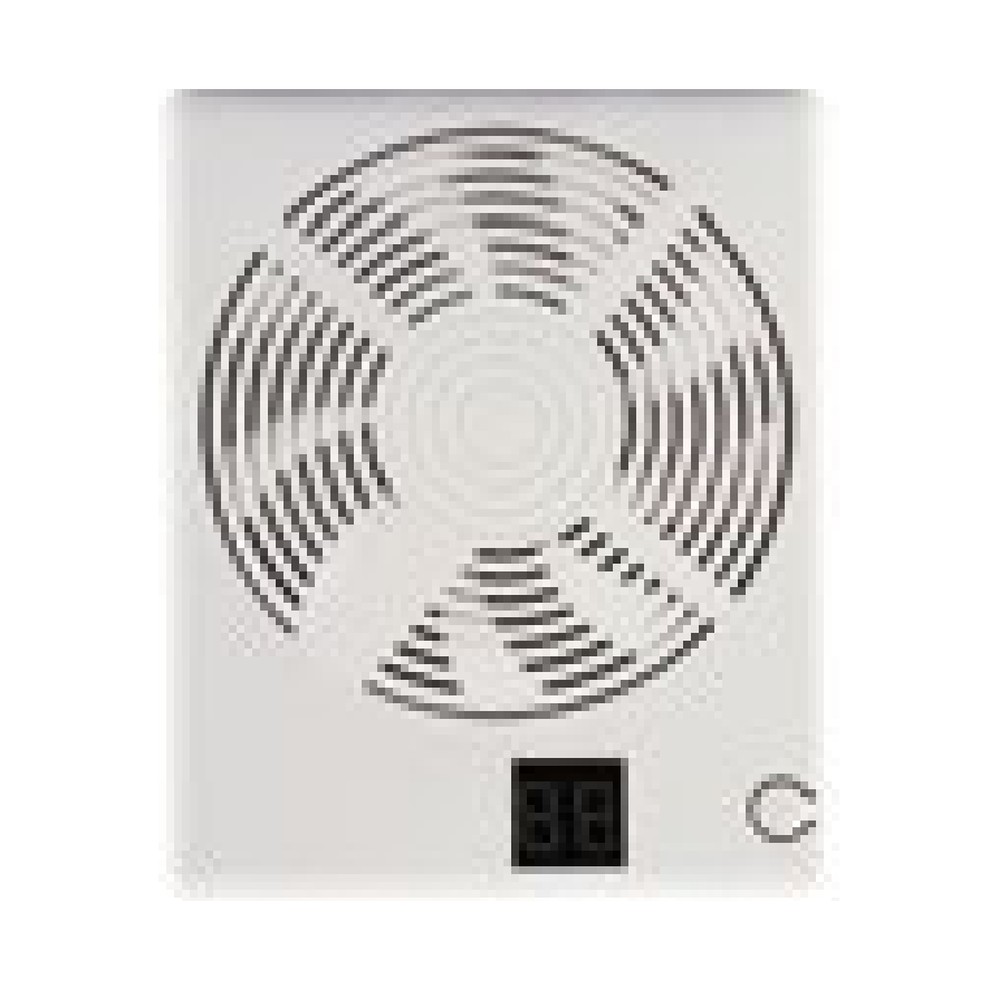

- ✓HEBX-FS1 fan module for in-box ventilation
- ✓HEBX-020 insertion module
- ✓10/100Mbps ports on all POE routing modules; POE provides non-standard 12V power supply
Ordering Information
| Image | Item # | Module type | Group | Configuration and functions |
|---|---|---|---|---|

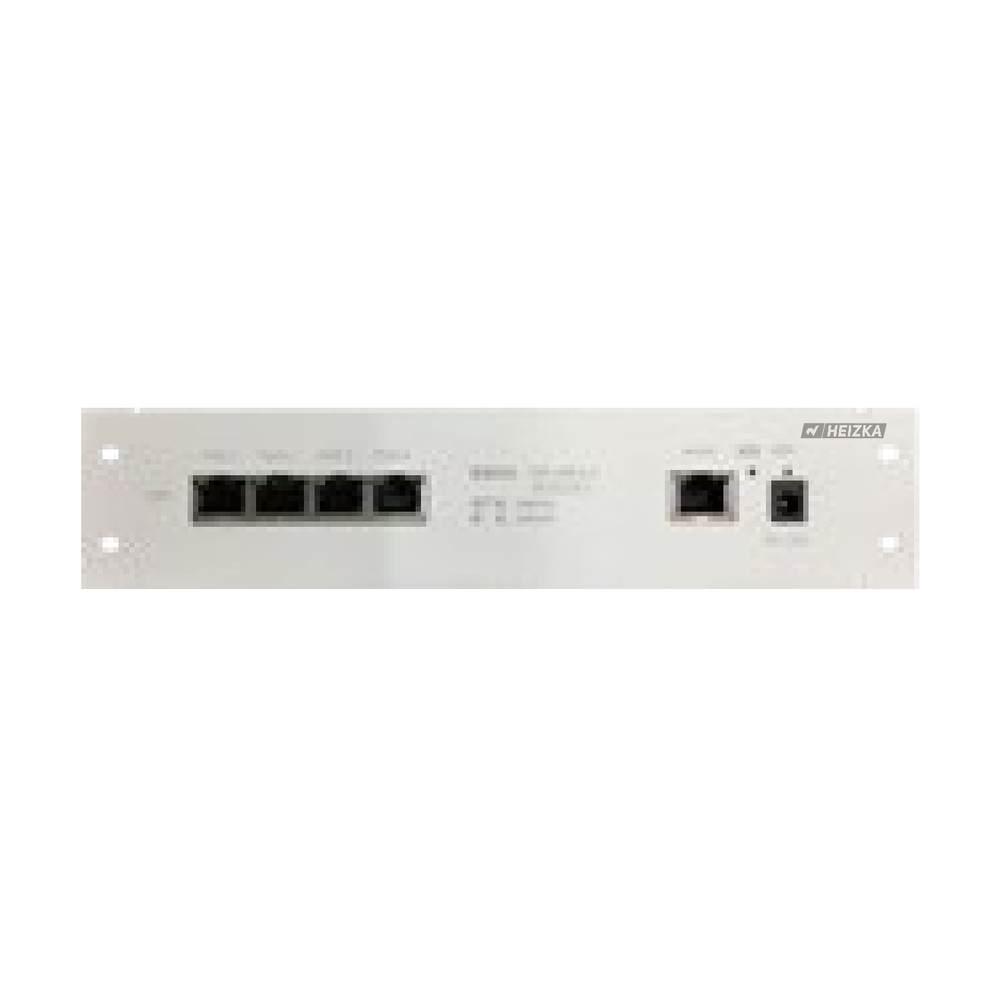

 | HEBX-B301 | POE routing module | Fiber Optic Box Modules | 1 WAN ports(10/100Mbps) 4 LAN ports(10/100Mbps) All 4 LAN ports are equipped with POE function POE provides non-standard 12V power supply |
 | HEBX-B302 | POE routing module | Fiber Optic Box Modules | 1 WAN ports(10/100Mbps) 8 LAN ports(10/100Mbps) Four LAN ports with POE function POE provides non-standard 12V power supply |

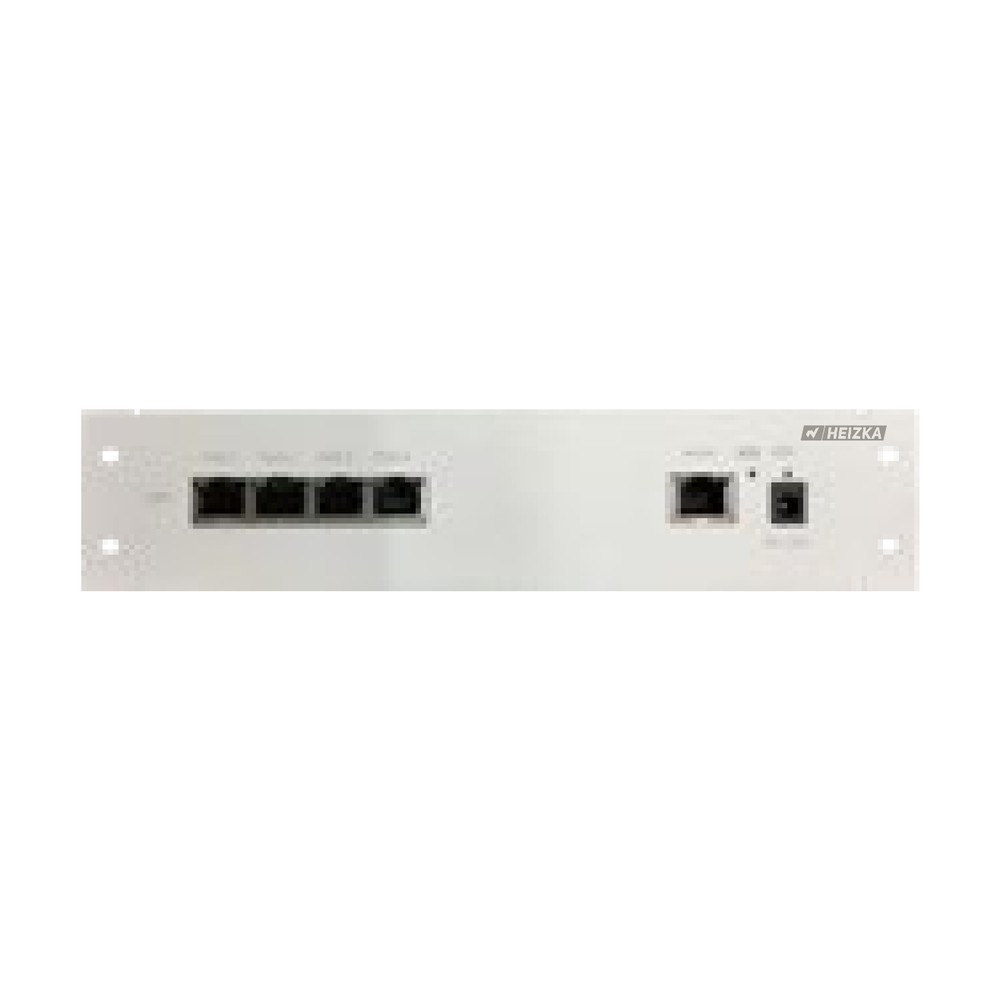

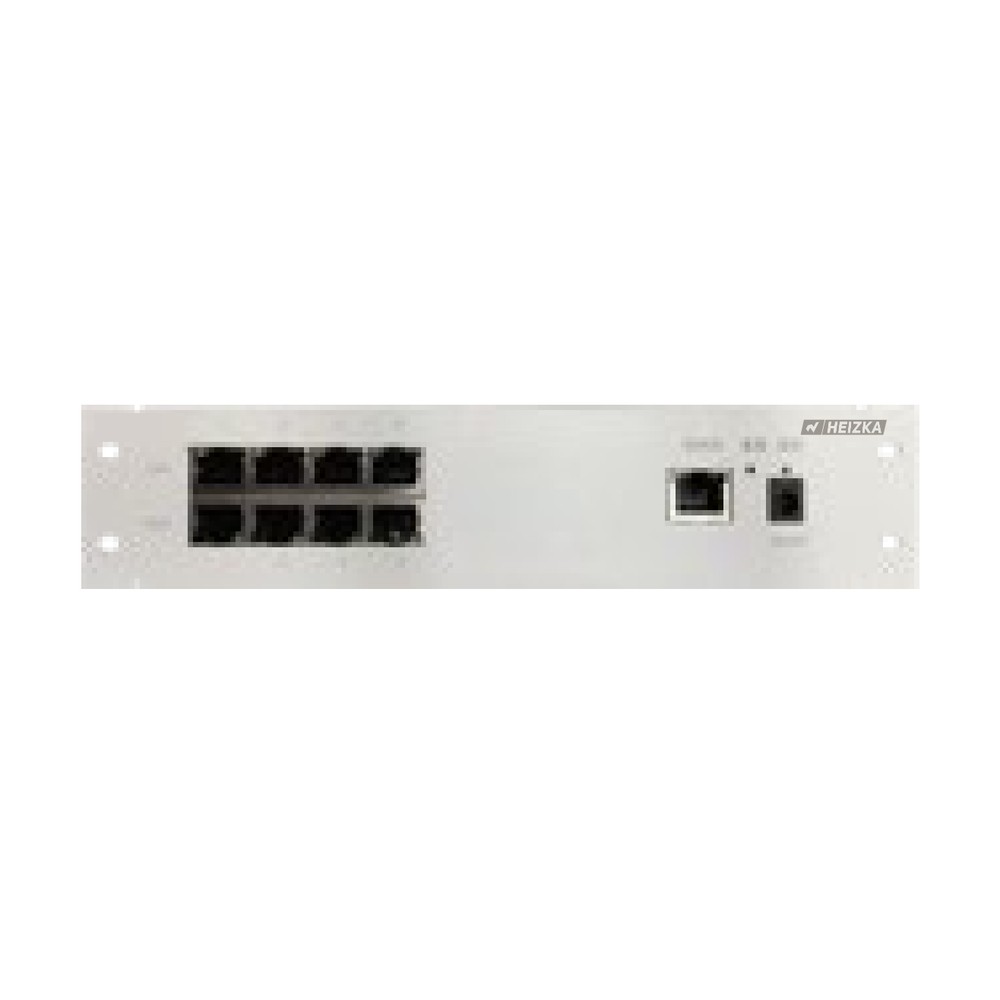

 | HEBX-B307 | POE routing module | Fiber Optic Box Modules | 1 uplink port (10/100Mbps) 4 LAN ports(10/100Mbps) All 4 LAN ports are equipped with POE function POE provides non-standard 12V power supply |
| HEBX-B308 | POE routing module | Fiber Optic Box Modules | 1 uplink port (10/100Mbps) 8 LAN ports(10/100Mbps) 8 LAN ports with POE function POE provides non-standard 12V power supply |
 | HEBX-A301 | Telephone Module | Information Box Modules | 1 in 4 out telephone module |

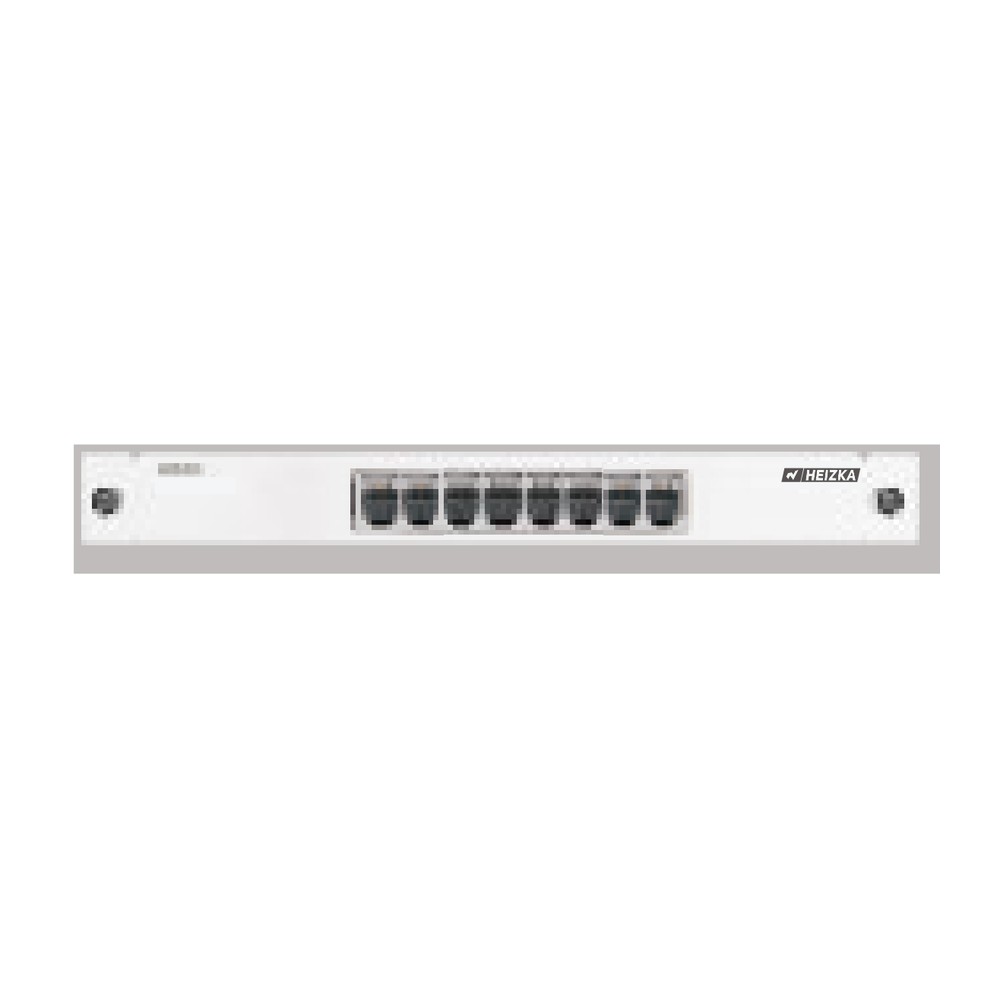

 | HEBX-A304 | Telephone Module | Information Box Modules | 1 in 7 out telephone module |
 | HEBX-B305 | Data Module | Information Box Modules | 1 in 4 out computer module (without switch function) |

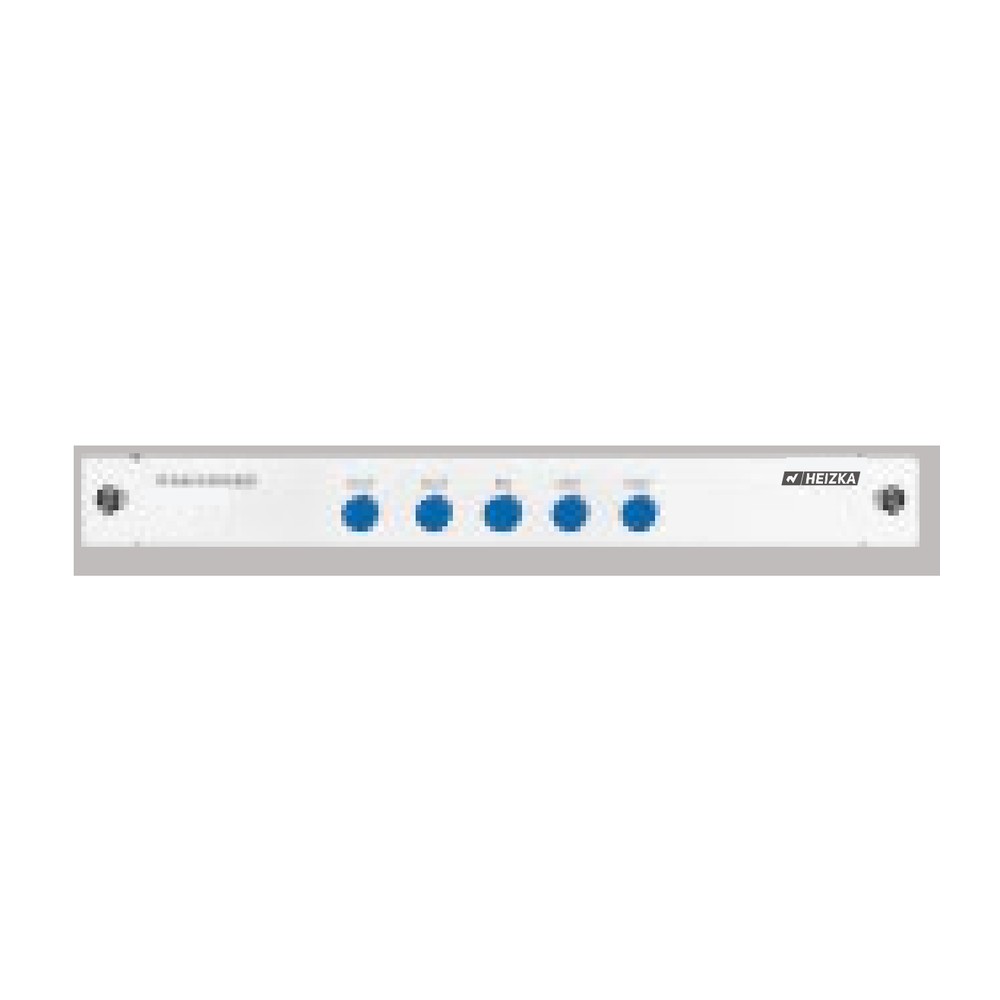

 | HEBX-C301 | Cable TV Signal Module | Information Box Modules | 1 in 4 out TV module |
 | HEBX-C302 | Cable TV Signal Module | Information Box Modules | 1 in 6 out TV module |
 | HEBX-C303 | Television Telephone Integrated Module | Information Box Modules | 1 in 4 out phone+1 in 4 out TV module |

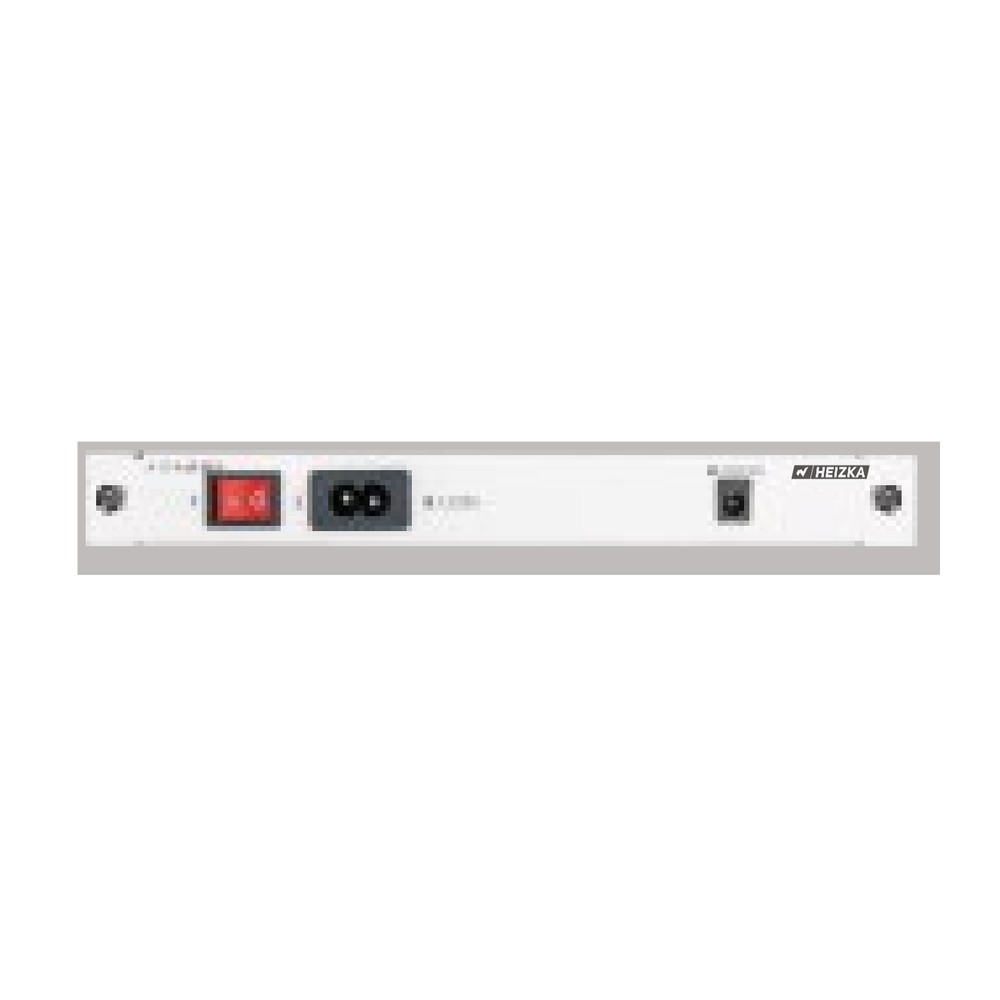

 | HEBX-E301 | Switching Power Module | Power, Blank, Fan and Installation Accessories | Power module 12V/24V1A power supply (optional) |
 | HEBX-G301 | Fill In The Blank Module | Power, Blank, Fan and Installation Accessories | 1U Fill in the blank module |

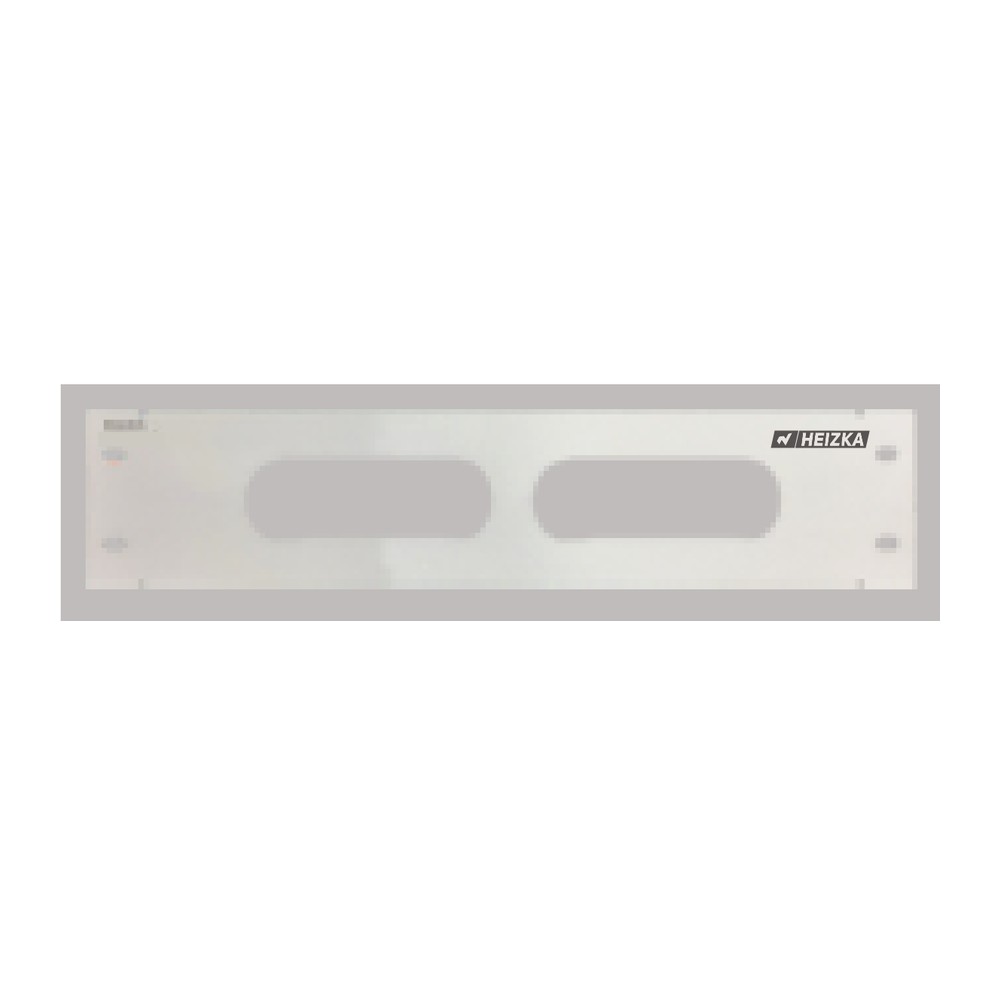

 | HEBX-G302 | Fill In The Blank Module | Power, Blank, Fan and Installation Accessories | 2U Fill in the blank module |
 | HEBX-FS1 | FAN Module | Power, Blank, Fan and Installation Accessories | FAN Module |

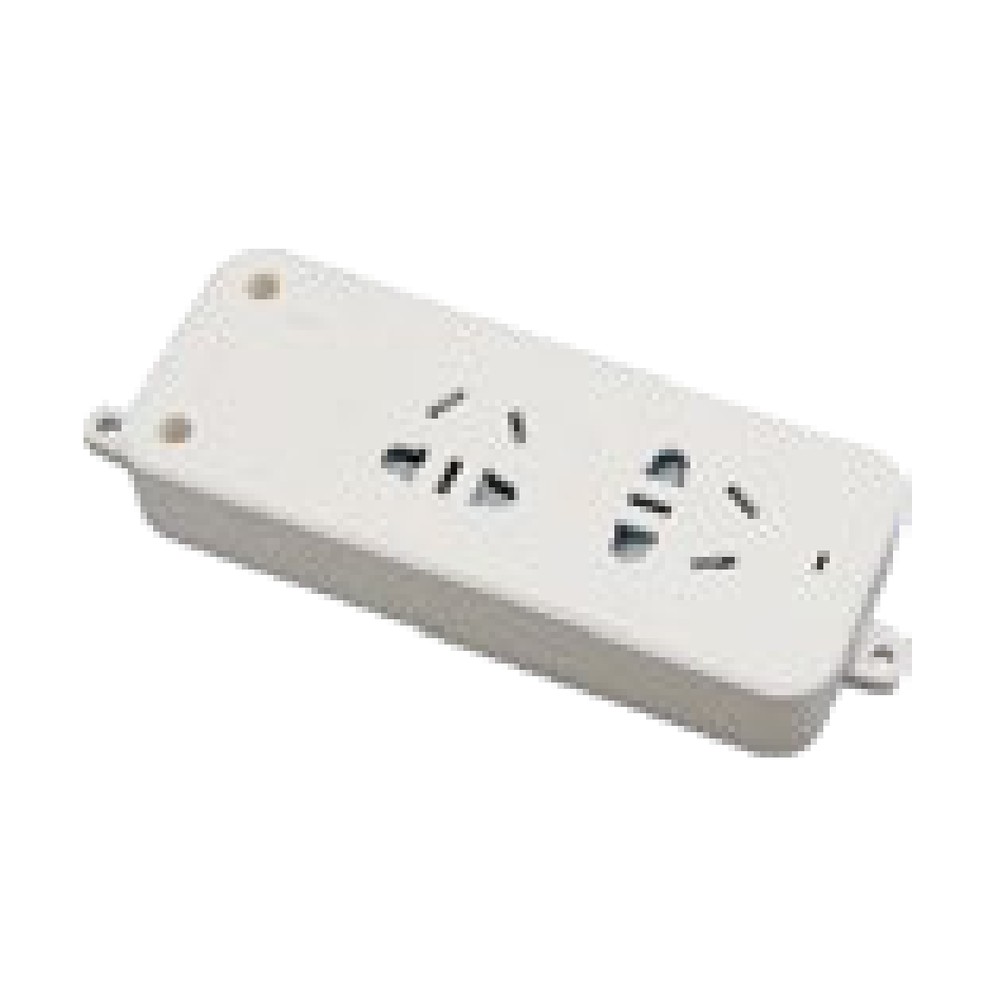

 | HEBX-020 | Insertion module | Power, Blank, Fan and Installation Accessories | Insertion module |
Technical Specifications
Fiber Optic Box Modules
| HEBX-B301 POE routing module | 1 WAN ports(10/100Mbps) 4 LAN ports(10/100Mbps) All 4 LAN ports are equipped with POE function POE provides non-standard 12V power supply |
| HEBX-B302 POE routing module | 1 WAN ports(10/100Mbps) 8 LAN ports(10/100Mbps) Four LAN ports with POE function POE provides non-standard 12V power supply |
| HEBX-B307 POE routing module | 1 uplink port (10/100Mbps) 4 LAN ports(10/100Mbps) All 4 LAN ports are equipped with POE function POE provides non-standard 12V power supply |
| HEBX-B308 POE routing module | 1 uplink port (10/100Mbps) 8 LAN ports(10/100Mbps) 8 LAN ports with POE function POE provides non-standard 12V power supply |
Information Box Modules
| HEBX-A301 Telephone Module | 1 in 4 out telephone module |
| HEBX-A304 Telephone Module | 1 in 7 out telephone module |
| HEBX-B305 Data Module | 1 in 4 out computer module (without switch function) |
| HEBX-C301 Cable TV Signal Module | 1 in 4 out TV module |
| HEBX-C302 Cable TV Signal Module | 1 in 6 out TV module |
| HEBX-C303 Television Telephone Integrated Module | 1 in 4 out phone+1 in 4 out TV module |
Power, Blank, Fan and Installation Accessories
| HEBX-E301 Switching Power Module | Power module 12V/24V1A power supply (optional) |
| HEBX-G301 Fill In The Blank Module | 1U Fill in the blank module |
| HEBX-G302 Fill In The Blank Module | 2U Fill in the blank module |
| HEBX-FS1 FAN Module | FAN Module |
| HEBX-020 Insertion module | Insertion module |
Frequently Asked Questions
Three groups: Fiber Optic Box Modules, Information Box Modules, and Power, Blank, Fan and Installation Accessories.
The HEBX-B301 has 1 WAN port (10/100Mbps) and 4 LAN ports (10/100Mbps) with all 4 LAN ports equipped with POE. The HEBX-B302 has 1 WAN port (10/100Mbps) and 8 LAN ports (10/100Mbps), of which four LAN ports have POE function.
Both use 1 uplink port (10/100Mbps). The HEBX-B307 provides 4 LAN ports with POE on all 4 ports, while the HEBX-B308 provides 8 LAN ports with POE on all 8 ports.
POE on the routing modules provides a non-standard 12V power supply.
HEBX-A301 is a 1 in 4 out telephone module and HEBX-A304 is a 1 in 7 out telephone module. HEBX-C301 is a 1 in 4 out TV module and HEBX-C302 is a 1 in 6 out TV module. HEBX-C303 combines 1 in 4 out phone with 1 in 4 out TV in one module.
No. The HEBX-B305 is a 1 in 4 out computer module without switch function.
The HEBX-E301 switching power module provides a 12V/24V1A power supply (optional).
They are fill in the blank modules used to close unused positions: HEBX-G301 is 1U and HEBX-G302 is 2U.
