Quick Specs
| Category | High-Density Optical Fiber Patch Panel, 19″ rack mount, 4U |
| Port capacity | 144 port SC / 288 port duplex LC |
| Splice tray | Integrated |
| Adaptor | Universal, unloaded |
| Compliance | ISO/IEC 11801:2008 ANSI/TIA/EIA 568-C.3 |
The Heizka high-density optical fiber patch panel HEAOU2884 is the largest fiber termination point in the Heizka rack cabinet range, holding up to 144 SC ports or 288 duplex LC ports in a single 4U, 19-inch enclosure. A built-in splice tray means fusion splices for every one of those ports are protected and stored inside the same frame, so a data-centre row or CATV head-end can terminate an entire fiber trunk without a separate splice cabinet.
Like the rest of the Heizka fiber patch panel family, the HEAOU2884 is universal and ships adaptor-unloaded, so SC, LC or a mixed connector layout can be fitted to match the pigtails and patch cords already standardised on site. It is built for both ribbon and single fiber and racks directly alongside Heizka server rack cabinets and copper patch panels.
Features
- ✓Rack mounting, 19″ standard size, lightweight
- ✓Suitable for ribbon and single fiber
- ✓Various panel plates to fit different adaptor interfaces
- ✓144C and 288C port options, with or without fiber optic pigtails and adaptors
- ✓Integrated splice tray for high-volume fusion splice protection
- ✓Easy for management and operation at high port density
Standard Compliance
ISO/IEC 11801:2008 ANSI/TIA/EIA 568-C.3
Optical channel and component requirements follow ISO/IEC 11801 and the TIA/EIA-568-C.3 fiber cabling standards.
Ordering Information
| Item # | Description |
|---|---|
| HEAOU2884 | Universal, 144 port SC / 288 port duplex LC, adaptor unloaded, with Splice Tray, 4U |
Technical Specifications
Construction & Application
| Mounting | 19″ rack mount, 4U |
| Port capacity | 144 port SC or 288 port duplex LC |
| Splice management | Integrated splice tray |
| Adaptor | Universal, unloaded, various panel plates |
| Fiber compatibility | Ribbon and single fiber |
| Typical application | Telecommunications subscriber loop, FTTH, LAN/WAN, CATV |
Optical Performance

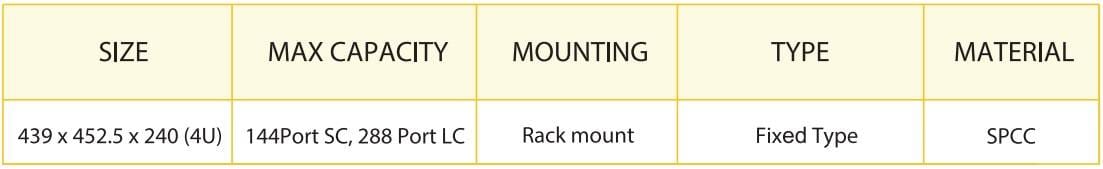

Construction
Fiber Patch Panel Family — Which Size Do You Need?
| Feature | HEAOU241A (1U, Splice Tray) | HEAOU1443S (3U, Sliding Type) | HEAOU2884 (4U, Splice Tray) |
|---|---|---|---|
| Rack space | 1U | 3U | 4U |
| Max. LC ports | 48 | 144 | 288 |
| Max. SC ports | 24 | 72 | 144 |
| Splice tray | Yes, integrated | No (sliding tray for access) | Yes, integrated |
| Best for | Small FTTH cabinets and light cross-connects | Sites needing frequent adaptor access without unracking | High-density data centre and CATV head-end fiber distribution |
Frequently Asked Questions
Up to 144 SC ports or 288 duplex LC ports in a single 4U frame, since duplex LC connectors pack twice the port density of SC in the same panel width.
Yes. An integrated splice tray holds and protects fusion splices for the full port count, so incoming trunk cable is spliced onto pigtails inside the same 4U enclosure.
The panel is universal and ships adaptor-unloaded, so SC or LC adaptors (or a mix) can be fitted to match the exact connector types used on the project.
Choose this high-density optical fiber patch panel when a single row needs 144 SC or 288 LC ports; for lighter loads, the 1U Heizka Fiber Patch Panel with Splice Tray or the sliding-type HEAOU481S/962S/1443S family cover smaller port counts.
Yes. It is built for telecommunications subscriber loop, FTTH, LAN/WAN and CATV applications and complies with ISO/IEC 11801 and ANSI/TIA/EIA 568-C.3.
Packaging & Delivery
Each Heizka high-density optical fiber patch panel HEAOU2884 ships as a complete 4U enclosure with splice tray and mounting hardware included. Adaptors and pigtails are packed separately when ordered, ready for on-site fiber termination.
