Quick Specs
| Category | CAT7A Patch Cord, RJ45 to RJ45 |
| Application | 10 Gigabit, 10G Base-T Ethernet |
| Constructions | U/UTP, F/UTP, S/FTP |
| Conductor | Stranded, 7*0.16 mm |
| RJ45 pin plating | 50µm gold-plating |
| Power over Ethernet | IEEE 802.3af / 802.3at / 802.3bt |
| Compliance | ISO/IEC 11801:2008 ANSI/TIA-568-C2 |
The Heizka CAT7A Patch Cord is the top of the Heizka copper patch cord range, built for 10 Gigabit and 10G Base-T Ethernet links in data centres, server rooms and high-density work areas. Every CAT7A patch cord uses stranded 7*0.16 mm conductors, so the cable stays flexible through tight bends behind a rack without stressing the terminations.
The cord is snagless: a moulded strain-relief boot shields the RJ45 lock tab so it cannot be snapped off when the cord is pulled through a bundle of cables. Gold-plated, staggered contact pins reduce NEXT, and the range is available in U/UTP, F/UTP and S/FTP constructions, six jacket colours and lengths from 1 m to custom.
Features
- ✓10 Gigabit, 10G Base-T Ethernet applications
- ✓Snagless design — a strain-relief boot protects the connector lock from being snapped off
- ✓Stranded conductors for flexibility and bending performance
- ✓Power over Ethernet (PoE) / PoE+: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- ✓Strain relief protection boots on both connectors
- ✓Gold-plated and staggered pin design to reduce NEXT
- ✓Available in different colours and lengths — six colours, six jacket ratings
Standard Compliance
ISO/IEC 11801:2008 ANSI/TIA-568-C2 IEC 61156-5 IEC 60603-7 EN 50173 IEC 60332-1
Channel and component requirements follow ISO/IEC 11801 and the TIA-568-C2 cabling standards.
Ordering Information

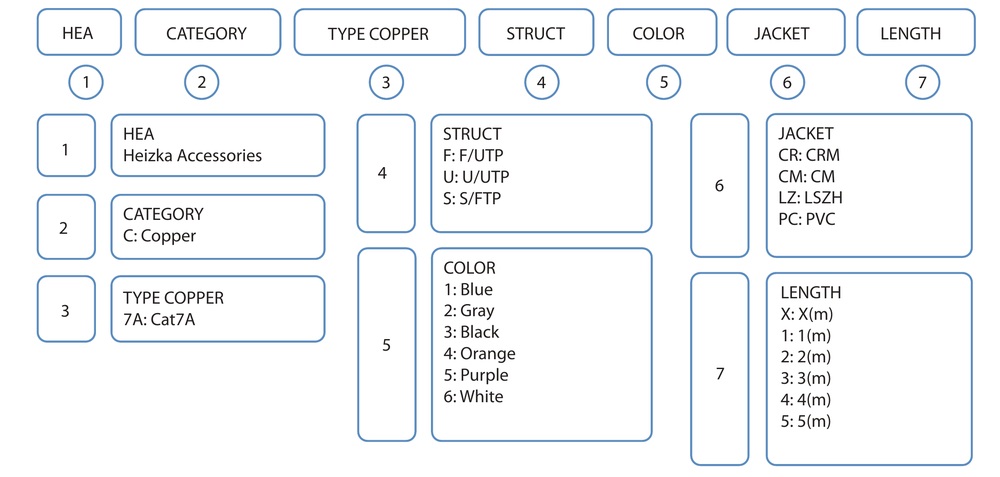

The CAT7A Patch Cord part number is built from seven fields — brand, category, copper type, screening structure, colour, jacket rating and length:
| 1 — HEA | Heizka Accessories |
| 2 — CATEGORY | C: Copper |
| 3 — TYPE COPPER | 7A: Cat7A |
| 4 — STRUCT | F: F/UTP | U: U/UTP | S: S/FTP |
| 5 — COLOR | 1: Blue | 2: Gray | 3: Black | 4: Orange | 5: Purple | 6: White |
| 6 — JACKET | CR: CRM | CM: CM | LZ: LSZH | PC: PVC |
| 7 — LENGTH | X: X(m) | 1: 1(m) | 2: 2(m) | 3: 3(m) | 4: 4(m) | 5: 5(m) |
Example part numbers
| Item # | Description |
|---|---|
| HEAC7AU1CM2 | CAT7A U/UTP Patch Cord Unshielded, BLUE, CM, 2m |
| HEAC7AF1CM2 | CAT7A F/UTP Patch Cord Shielded, BLUE, CM, 2m |
| HEAC7AS1CM2 | CAT7A S/FTP Patch Cord Shielded, BLUE, CM, 2m |
Technical Specifications
Full physical performance data for the Heizka CAT7A Patch Cord, exactly as published in the Heizka copper cabling catalogue.
Physical Performance
| Insulation | HDPE |
| RJ45 Pin | 50µm Gold-plating |
| Plug Insertion Life Span | ≥1000 times |
| Conductor | Stranded, 7*0.16 mm |
| Operating Temperature | -20 ~ 70°C |
Construction & Options
| Screening structures | U/UTP (unshielded), F/UTP (shielded), S/FTP (shielded) |
| Connector | RJ45, gold-plated staggered pin design |
| Boot | Snagless strain-relief protection boot, both ends |
| Jacket options | CRM, CM, LSZH, PVC |
| Colour options | Blue, Gray, Black, Orange, Purple, White |
| Standard lengths | 1 m, 2 m, 3 m, 4 m, 5 m, custom (X m) |
| Ethernet application | 10 Gigabit, 10G Base-T |
| PoE support | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
CAT7A vs CAT6A vs CAT6 Patch Cord — Which One Do You Need?
Use the table below to place the CAT7A Patch Cord against the other Heizka copper patch cords before you order.
| Feature | CAT7A Patch Cord | CAT6A Patch Cord | CAT6 Patch Cord |
|---|---|---|---|
| Example Item # | HEAC7AU1CM2 | HEAC6AU1CM2 | HEAC6U1CM2 |
| Ethernet application | 10 Gigabit, 10G Base-T | 10 Gigabit, 10G Base-T | 1000 Base-T |
| Screening structures | U/UTP, F/UTP, S/FTP | U/UTP, F/UTP, S/FTP | U/UTP, F/UTP, S/FTP |
| Conductor | Stranded, 7*0.16 mm | Stranded, 7*0.16 mm | 28AWG – 24AWG |
| Insulation | HDPE | HDPE | HDPE |
| RJ45 pin plating | 50µm gold-plating | 50µm gold-plating | 50µm gold-plating |
| Plug insertion life | ≥1000 times | ≥1000 times | ≥1000 times |
| PoE support | 802.3af / at / bt | 802.3af / at / bt | 802.3af / at / bt, Types 1–4, up to 90W |
| Compliance | ISO/IEC 11801, TIA-568-C2, IEC 61156-5, IEC 60603-7, EN 50173, IEC 60332-1 | ISO/IEC 11801, TIA-568-C2, IEC 61156-5, IEC 60603-7, EN 50173, IEC 60332-1 | ISO/IEC 11801, TIA-568-C2, IEC 61156-5, IEC 60603-7, EN 50173, IEC 60332-1 |
| Best for | Highest-headroom 10G links and shielded environments | 10G links to 100 m | Gigabit links and high-power PoE |
Frequently Asked Questions
Snagless means a moulded boot covers the RJ45 latch. When you pull the cord out of a dense bundle the boot deflects cables away from the lock tab so it cannot catch and snap off.
A broken latch is the most common reason a patch cord fails, so the boot directly extends service life.
U/UTP is the unshielded option and is the lightest and easiest to route. F/UTP adds an overall foil screen and S/FTP adds both a foil screen per pair and an overall braid.
Choose a shielded CAT7A Patch Cord where the cabling runs close to motors, lifts, VFDs or dense power cabling; specify a shielded outlet and earthed patch panel to match.
Yes. The CAT7A Patch Cord supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt, so it will carry standard PoE, PoE+ and higher-power PoE loads to access points, cameras and IP phones.
Standard lengths are 1, 2, 3, 4 and 5 metres, plus custom lengths via the X code. Six jacket colours are available — blue, gray, black, orange, purple and white — along with CRM, CM, LSZH and PVC jacket ratings.
Read it in seven fields: HEA brand, C for copper, 7A for Cat7A, the screening structure, the colour digit, the jacket code and the length. HEAC7AS1CM2 is therefore a CAT7A S/FTP shielded patch cord in blue with a CM jacket, 2 m long.
The patch cord uses stranded conductors for flexibility and is terminated with RJ45 plugs, so it belongs in the patching field. For the fixed horizontal run between the patch panel and the outlet use solid-conductor Heizka CAT7A installation cable, and terminate it onto a structured cabling patch panel.
Packaging & Delivery
Each CAT7A Patch Cord is individually bagged with the length and part number printed on the label, then packed in cartons by length and colour for easy stock control.
Cords are supplied factory-terminated and 100% tested, so no field termination or certification of the cord itself is required. Custom lengths and colour mixes can be built to order using the X length code.
