Quick Specs
| Category | CAT5E Patch Cord, RJ45 to RJ45 |
| Application | 1000 Base-T Ethernet |
| Constructions | U/UTP, F/UTP, S/FTP |
| Conductor | Stranded, 7*0.16 mm |
| RJ45 pin plating | 50µm gold-plating |
| Plug insertion life | ≥1000 times |
| Compliance | ISO/IEC 11801:2008 ANSI/TIA-568-C2 |
The Heizka CAT5E Patch Cord is the cost-effective RJ45 to RJ45 cord for 1000 Base-T Gigabit links — ideal for desk drops, IP phones, printers, CCTV and any refresh where a full CAT6 upgrade is not justified. Stranded 7*0.16 mm conductors keep every CAT5E patch cord flexible enough to route neatly through a cable manager and survive repeated re-patching.
Gold-plated, staggered contact pins reduce NEXT and a plug insertion life of at least 1000 cycles means the cord holds up in a busy patch field. Strain relief protection boots on both ends shield the RJ45 latch, and the range is offered in U/UTP, F/UTP and S/FTP constructions across six colours and four jacket ratings.
Features
- ✓1000 Base-T Ethernet applications
- ✓Stranded conductors for flexibility and bending performance
- ✓Strain relief protection boots on both connectors
- ✓Gold-plated and staggered pin design to reduce NEXT
- ✓Available in different colours and lengths — six colours, four jacket ratings
- ✓50µm gold-plated RJ45 pins with a plug insertion life of at least 1000 cycles
- ✓Unshielded and shielded options: U/UTP, F/UTP and S/FTP
Standard Compliance
ISO/IEC 11801:2008 ANSI/TIA-568-C2 IEC 61156-5
Channel and component requirements follow ISO/IEC 11801 and the TIA-568-C2 cabling standards.
Ordering Information

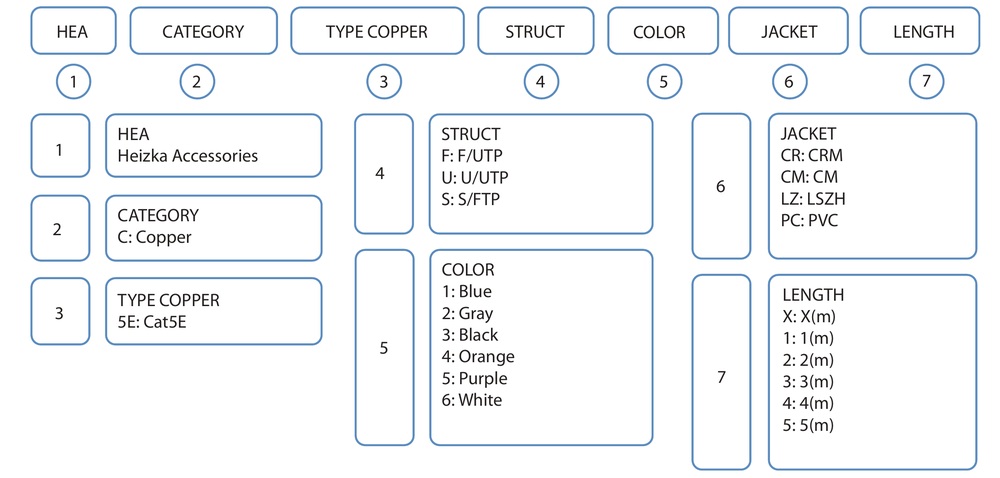

The CAT5E Patch Cord part number is built from seven fields — brand, category, copper type, screening structure, colour, jacket rating and length:
| 1 — HEA | Heizka Accessories |
| 2 — CATEGORY | C: Copper |
| 3 — TYPE COPPER | 5E: Cat5E |
| 4 — STRUCT | F: F/UTP | U: U/UTP | S: S/FTP |
| 5 — COLOR | 1: Blue | 2: Gray | 3: Black | 4: Orange | 5: Purple | 6: White |
| 6 — JACKET | CR: CRM | CM: CM | LZ: LSZH | PC: PVC |
| 7 — LENGTH | X: X(m) | 1: 1(m) | 2: 2(m) | 3: 3(m) | 4: 4(m) | 5: 5(m) |
Example part numbers
| Item # | Description |
|---|---|
| HEAC5EU1CM2 | CAT5E U/UTP Patch Cord Unshielded, BLUE, CM, 2m |
| HEAC5EF1CM2 | CAT5E F/UTP Patch Cord Shielded, BLUE, CM, 2m |
| HEAC5ES1CM2 | CAT5E S/FTP Patch Cord Shielded, BLUE, CM, 2m |
Technical Specifications
Full physical performance data for the Heizka CAT5E Patch Cord, exactly as published in the Heizka copper cabling catalogue.
Physical Performance
| Insulation | HDPE |
| RJ45 Pin | 50µm Gold-plating |
| Plug Insertion Life Span | ≥1000 times |
| Conductor | Stranded, 7*0.16 mm |
| Operating Temperature | -20 ~ 70°C |
Construction & Options
| Screening structures | U/UTP (unshielded), F/UTP (shielded), S/FTP (shielded) |
| Connector | RJ45, gold-plated staggered pin design |
| Boot | Strain relief protection boot, both ends |
| Jacket options | CRM, CM, LSZH, PVC |
| Colour options | Blue, Gray, Black, Orange, Purple, White |
| Standard lengths | 1 m, 2 m, 3 m, 4 m, 5 m, custom (X m) |
| Ethernet application | 1000 Base-T |
CAT5E vs CAT6 vs CAT6A Patch Cord — Which One Do You Need?
Use the table below to place the CAT5E Patch Cord against the other Heizka copper patch cords before you order.
| Feature | CAT5E Patch Cord | CAT6 Patch Cord | CAT6A Patch Cord |
|---|---|---|---|
| Example Item # | HEAC5EU1CM2 | HEAC60U1CM2 | HEAC6AU1CM2 |
| Ethernet application | 1000 Base-T | 1000 Base-T | 10 Gigabit, 10G Base-T |
| Screening structures | U/UTP, F/UTP, S/FTP | U/UTP, F/UTP, S/FTP | U/UTP, F/UTP, S/FTP |
| Conductor | Stranded, 7*0.16 mm | 28AWG – 24AWG | Stranded, 7*0.16 mm |
| Insulation | HDPE | HDPE | HDPE |
| RJ45 pin plating | 50µm gold-plating | 50µm gold-plating | 50µm gold-plating |
| Plug insertion life | ≥1000 times | ≥1000 times | ≥1000 times |
| PoE support | Not stated in catalogue | 802.3af / at / bt, Types 1–4, up to 90W | 802.3af / at / bt |
| Compliance | ISO/IEC 11801, TIA-568-C2, IEC 61156-5 | ISO/IEC 11801, TIA-568-C2, IEC 61156-5, IEC 60603-7, EN 50173, IEC 60332-1 | ISO/IEC 11801, TIA-568-C2, IEC 61156-5, IEC 60603-7, EN 50173, IEC 60332-1 |
| Best for | Budget Gigabit drops and legacy refresh | Gigabit links and high-power PoE | 10G links to 100 m |
Frequently Asked Questions
Yes. CAT5E is specified for 1000 Base-T, so a CAT5E patch cord runs full Gigabit to a desk, phone, printer or camera without difficulty.
Step up to CAT6 or CAT6A only when you need 10 Gigabit headroom or are certifying a new installation to a higher class.
The moulded boot wraps the point where the cable enters the RJ45 plug. It stops the conductors flexing sharply at the termination and shields the latch, which is the part that usually breaks first in a busy patch field.
U/UTP is unshielded and the simplest to route. F/UTP adds an overall foil screen, and S/FTP adds a foil screen per pair plus an overall braid.
Choose a shielded CAT5E patch cord where cabling passes close to motors, lifts or heavy power runs, and pair it with a shielded outlet and an earthed patch panel.
Standard lengths are 1, 2, 3, 4 and 5 metres, with custom lengths through the X code. Six colours are available — blue, gray, black, orange, purple and white — across CRM, CM, LSZH and PVC jacket ratings.
Read it in seven fields: HEA brand, C for copper, 5E for Cat5E, the screening structure, the colour digit, the jacket code and the length. HEAC5EF1CM2 is therefore a CAT5E F/UTP shielded patch cord in blue with a CM jacket, 2 m long.
The patch cord uses stranded conductors and factory-fitted RJ45 plugs so it flexes through repeated patching. The permanent link between the patch panel and the outlet should use solid-conductor Heizka CAT5E installation cable; if you are specifying a new build, compare it against 61 Series CAT6 first.
Packaging & Delivery
Every CAT5E Patch Cord is individually bagged with the length and part number on the label, then packed in cartons sorted by length and colour so site stock stays easy to control.
Cords ship factory-terminated and 100% tested, so no field termination or certification of the cord itself is required. Custom lengths and mixed colour packs are built to order using the X length code.
