Quick Specs
| Category | 19″ T Type Wall Mount Cabinet, single section |
| U capacity | 4U / 6U / 9U / 12U / 15U |
| Dimensions (W×D×H) | 600 × 450 or 600 × 280–750 mm |
| Frame material | SPCC quality cold rolled steel |
| Front door | 5 mm tempered glass, opens over 180° |
| Static loading | 30 kg – 60 kg |
| Compliance | ANSI/EIA RS-310-D ETSI |

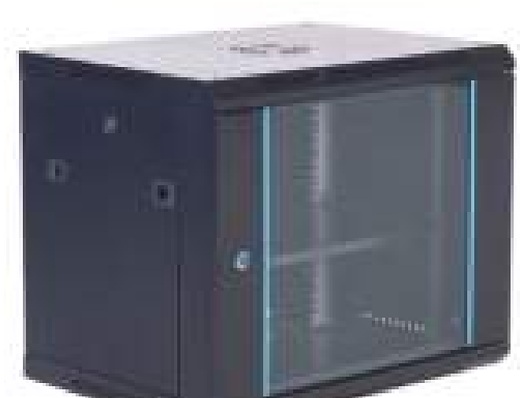

The Heizka T Type Wall Mount Cabinet is the deeper, higher-capacity member of the Heizka wall-mount family. Built on a steel frame with assistant profile in an unassembled structure, this wall mount cabinet is 600 mm wide and available in 450 mm or 600 mm depth — enough room for NVRs, deeper switches, UPS units and rack-mount appliances that will not fit a shallow enclosure.
Five heights cover 4U through 15U, so the T Type Wall Mount Cabinet scales from a single-switch comms point to a compact surveillance or AV rack. A 5 mm tempered glass front door swings open past 180 degrees, and a back panel with four mounting holes makes fixing the cabinet securely to the wall a simple job.
Features
- ✓Steel frame with assistant profile, unassembled structure for compact shipping
- ✓Single section, fully compatible with 19″ standard equipment
- ✓5 mm tempered glass front door that opens over 180 degrees for full access
- ✓Cable entry on both the top and bottom of the cabinet
- ✓L-shaped mounting profile, easily adjustable along the mounting rail
- ✓Fan cutout on the top so a cooling fan installs without modification
- ✓Back panel with four mounting holes for a secure, straightforward wall fix
- ✓Wide range of optional accessories: fans, shelves, PDUs and cable managers
Standard Compliance
ANSI/EIA RS-310-D IEC 297-2 DIN 41491 PART 1 DIN 41491 PART 7 ETSI
Rack unit geometry follows the 19-inch standard defined by IEC 297-2 and the ETSI equipment-practice specifications.
Ordering Information
| Item # | U Capacity | W (mm) | D (mm) | H (mm) | Packaging Size (mm) |
|---|---|---|---|---|---|
| HER0464T | 4U | 600 | 450 | 280 | 650 x 500 x 170 |
| HER0466T | 4U | 600 | 600 | 280 | 580 x 650 x 170 |
| HER0664T | 6U | 600 | 450 | 350 | 650 x 500 x 170 |
| HER0666T | 6U | 600 | 600 | 350 | 580 x 650 x 170 |
| HER0964T | 9U | 600 | 450 | 500 | 650 x 500 x 170 |
| HER0966T | 9U | 600 | 600 | 500 | 580 x 450 x 170 |
| HER1264T | 12U | 600 | 450 | 650 | 650 x 700 x 170 |
| HER1266T | 12U | 600 | 600 | 650 | 580 x 700 x 170 |
| HER1564T | 15U | 600 | 450 | 750 | 650 x 800 x 170 |
| HER1566T | 15U | 600 | 600 | 750 | 580 x 800 x 170 |
Technical Specifications
Full construction and dimensional data for every Heizka T Type Wall Mount Cabinet is listed below, exactly as published in the Heizka rack cabinet catalogue.
Construction & Materials
| Structure | Steel frame with assistant profile, unassembled structure |
| Sections | Single section |
| Equipment compatibility | 19-inch standard equipment |
| Frame material | SPCC quality cold rolled steel |
| Mounting profile thickness | 1.5 mm (other parts: 0.8–1.0 mm) |
| Mounting profile type | L-shaped, adjustable along the mounting rail |
| Front door | 5 mm tempered glass, opens over 180° |
| Cable entry | Top and bottom |
| Ventilation | Fan cutout on the top |
| Wall fixing | Back panel with four mounting holes |
Dimensional & Mechanical Data
| U capacity | 4U, 6U, 9U, 12U, 15U |
| Width (W) | 600 mm |
| Depth (D) | 450 mm / 600 mm |
| Height (H) | 280 / 350 / 500 / 650 / 750 mm |
| Static loading | 30 kg – 60 kg |
| Packaging size | 580 x 450 x 170 mm to 650 x 800 x 170 mm |
| Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 PART 1, DIN 41491 PART 7, ETSI |
| Optional accessories | Cooling fan, shelf, PDU, cable manager, blanking panels |
T Type vs W Type vs Server Rack Cabinet — Which One Do You Need?
| Feature | T Type Wall Mount Cabinet | W Type Wall Mount Cabinet | Server Rack Cabinet |
|---|---|---|---|
| Example Item # | HER0664T | HER0654W | HER2766XY |
| Installation | Wall mounted | Wall mounted | Floor standing |
| U capacity | 4U / 6U / 9U / 12U / 15U | 4U / 6U / 9U / 12U | 27U / 32U / 37U / 42U / 47U |
| Width (mm) | 600 | 530 | 600 / 800 |
| Depth (mm) | 450 / 600 | 400 | 600 / 800 / 1000 |
| Height (mm) | 280 / 350 / 500 / 650 / 750 | 240 / 300 / 450 / 600 | 1400 – 2200 |
| Mounting profile | 1.5 mm (others 0.8–1.0 mm), L-shaped | 1.0–1.5 mm (others 0.6–0.8 mm), L-shaped | 2.0 mm (others 1.0–1.2 mm), S-shaped |
| Static loading | 30 kg – 60 kg | 30 kg – 60 kg | 800 kg – 1000 kg |
| Structure | Steel frame with assistant profile, unassembled | Assembly, single section | Classic disassembled, flat packing |
| Best for | Deeper NVRs, UPS units and appliances | Shallow walls, offices and retail sites | Data centres and full equipment stacks |
Frequently Asked Questions
Should I choose the 450 mm or 600 mm deep T Type Wall Mount Cabinet?
Measure the deepest device you plan to mount and add roughly 60 mm for cabling and connectors behind it.
The 450 mm depth suits switches, patch panels and small NVRs. The 600 mm depth is the safer choice for UPS units, larger NVRs and short rack-mount servers.
Which U size should I order?
Add up the rack units of your equipment and allow one spare U for airflow, then match that total to a T Type Wall Mount Cabinet size. 4U and 6U cover a switch plus patch panel, 9U and 12U suit surveillance and AV installations, and 15U is the largest T Type Wall Mount Cabinet for a compact comms room.
How much weight can the cabinet hold?
Static loading is rated at 30 kg to 60 kg depending on model, carried by a 1.5 mm L-shaped mounting profile in SPCC quality cold rolled steel.
Fix the back panel through all four mounting holes into structural wall material and load the heaviest device lowest.
Can a cooling fan be fitted?
Yes. A fan cutout is provided on the top panel, so a cooling fan bolts on without drilling. Cable entry on the top and bottom keeps airflow paths clear of cable bundles.
Is it compatible with standard 19-inch equipment?
Yes. The cabinet is a single-section design compatible with 19-inch standard equipment and complies with ANSI/EIA RS-310-D, IEC 297-2, DIN 41491 PART 1 and PART 7 and ETSI, so CAT6 structured cabling patch panels mount straight onto the profile.
How is the T Type different from the W Type and the Server Rack Cabinet?
The T Type is 600 mm wide and up to 600 mm deep in sizes to 15U, while the W Type Wall Mount Cabinet is a slimmer 530 x 400 mm enclosure up to 12U.
For loads beyond 60 kg or capacities above 15U, step up to the floor-standing Heizka Server Rack Cabinet.
Packaging & Delivery
The T Type Wall Mount Cabinet ships as an unassembled steel frame kit in a single carton sized to the model, from 580 x 450 x 170 mm up to 650 x 800 x 170 mm.
The flat carton keeps freight volume and cost down and protects the powder-coated finish and the 5 mm tempered glass door in transit. Wall-fixing hardware and any ordered accessories are packed with the T Type Wall Mount Cabinet.
