Overview

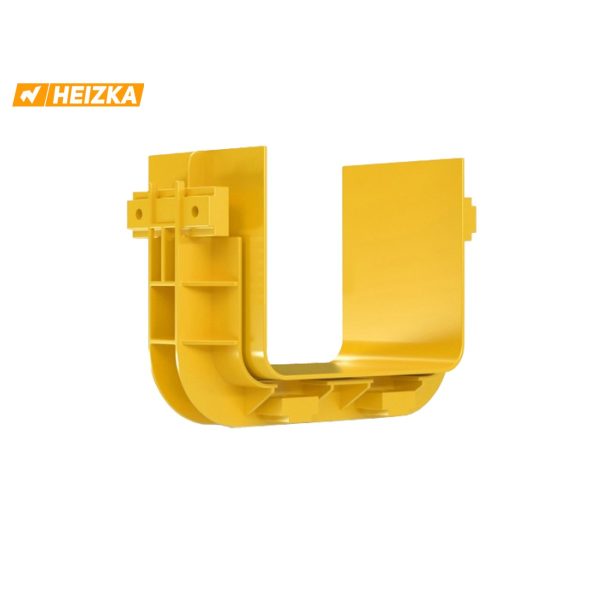

The Heizka Cutting-in Tee creates a 90° horizontal branch from anywhere along an existing straight run – without cutting the run into two sections and without disturbing the fibre already installed in it.
It is the fitting to use when a pathway has to be extended after commissioning: the tee clamps onto the side of the channel, so a new spur can be added to a live system with minimal disruption.
Key Features
- Branches off an existing run without cutting it – no need to remove installed fibre.
- Ideal for adding pathways to a system already in service.
- Available in the 120, 240 and 600 mm series.
- Bend-radius control – the moulded profile keeps fibre patch cords within their minimum bend radius through the fitting.
- Self-extinguishing plastics – flame-retardant material to UL94-V0.
- Toolless or low-tool assembly – joins to channel and other fittings with the matching Heizka connector kits.
- High-visibility yellow – keeps the fibre pathway clearly segregated from copper services.
- Matching snap-on cover – the fitting is fully enclosed once the cover is fitted (where a cover is listed).
Technical Specifications
| Series | Item No. | Name | W (mm) | H (mm) | Overall (mm) | Colour | Material |
|---|---|---|---|---|---|---|---|
| 120 | LL23E | 120mm Cutting in tee | 120 | 100 | 233 × 132 × 116 | Yellow | PVC/ABS |
| 240 | LL26E | 240mm Cutting in tee | 240 | 100 | 353 × 132 × 116 | Yellow | PVC/ABS |
| 600 | 312E0 | 600mm Cut-in tee | 600 | 100 | 712 × 138 × 116 | Yellow | PVC |
Installation notes
- 120 series: 1 connector is needed; installation needs T-shape screw (LT5B4) and twist nut, 2 pieces each.
- 240 series: 1 piece of 240 connector B kit, 8 pieces of plastic round head screw (LT5B4), T-shape screw and twist head nut 2 pieces each.
- 600 series: installation needs 3 pieces of 360 Type A connector.
- Flame retardant: UL94-V0.
- Available in the 120, 240 and 600 series.
- The 600 mm cut-in tee appears as item no. 312E0 in the order information table and as 321E0 in the detail table of the source catalogue; 312E0 is used here. Cover item numbers for the 120 mm and 240 mm cutting-in tees are not listed because they could not be read with confidence – please request them from Heizka.
Dimensions are quoted from the Heizka Fibre Management System catalogue. Specifications are subject to change without notice – please confirm critical dimensions with Heizka before ordering.
Standards & Compliance
- Flame retardancy: UL94-V0 self-extinguishing plastics.
- Material: PVC / ABS mouldings; steel support hardware is electroplated zinc with a powder-coated finish.
- All plastic-based components are specified to be RoHS compliant.
- Colour: high-visibility yellow, identifying the fibre pathway.
- Environment: indoor use in data centres, telecommunication exchanges and equipment rooms.
Typical Applications
- Data centres and server rooms – fibre patch cord routing between racks and rows.
- Telecommunication exchanges and central offices.
- Optical distribution frames (ODF) and fibre cross-connect areas.
- Any installation where fibre must be segregated from copper services and protected end to end.
Download
Catalogue extract for this product, taken from the Heizka Fibre Management System catalogue:
