Overview

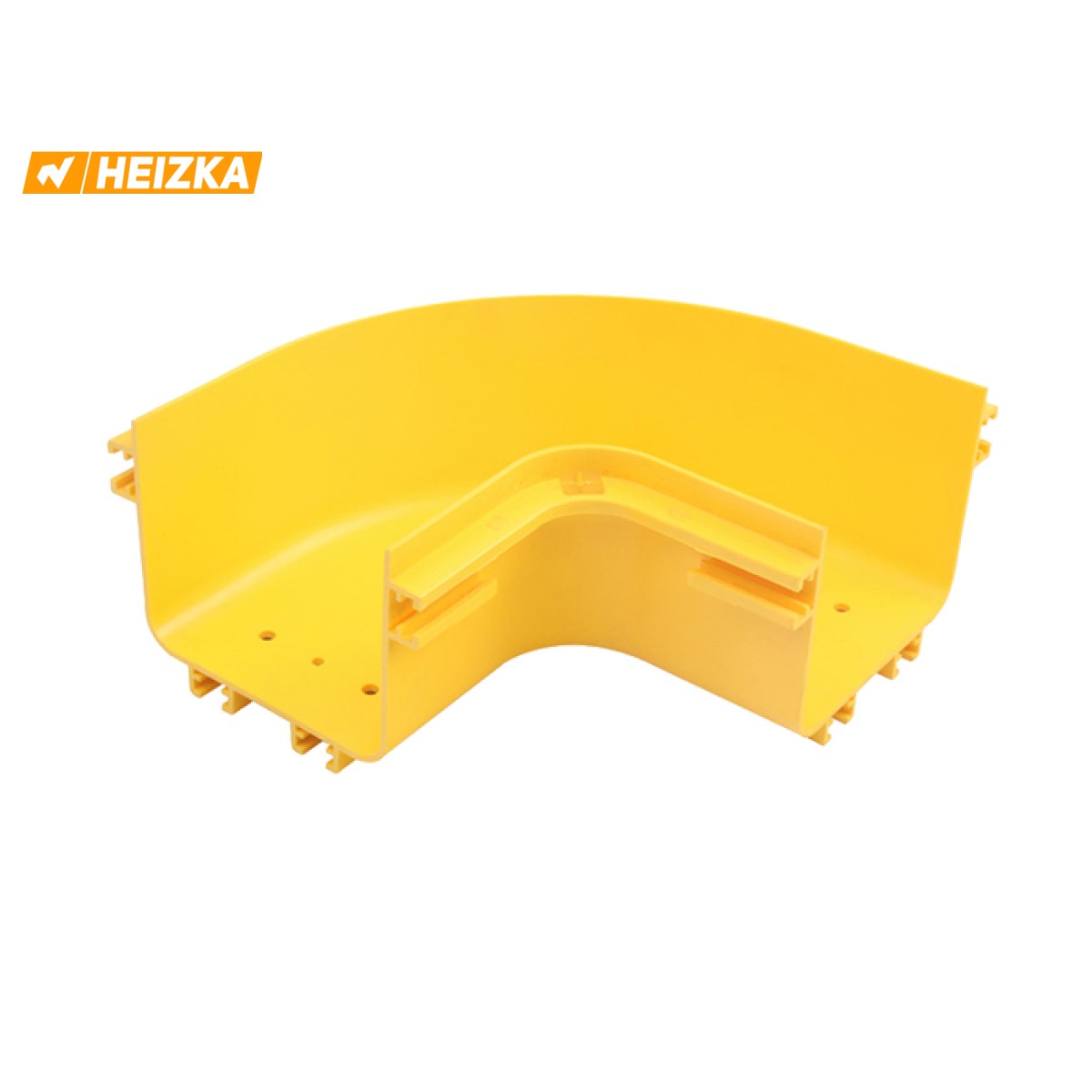

The Heizka Horizontal 90° Elbow turns a straight horizontal run of Heizka fibre raceway through 90° in the horizontal plane. It attaches to channel and/or other fittings and, with the matching snap-on cover, keeps the fibre fully enclosed around the corner.
The elbow is available for the 60, 120, 240 and 360 mm series, so a single change of direction can be made anywhere in the pathway without splicing or re-routing cable. A connector-free 45° horizontal elbow is also offered for the 120 and 240 mm series where a shallower change of direction is required.
Key Features
- Full 90° horizontal change of direction with a generous internal radius.
- Available across the 60, 120, 240 and 360 mm series.
- Bend-radius control – the moulded profile keeps fibre patch cords within their minimum bend radius through the fitting.
- Self-extinguishing plastics – flame-retardant material to UL94-V0.
- Toolless or low-tool assembly – joins to channel and other fittings with the matching Heizka connector kits.
- High-visibility yellow – keeps the fibre pathway clearly segregated from copper services.
- Matching snap-on cover – the fitting is fully enclosed once the cover is fitted (where a cover is listed).
Technical Specifications
| Series | Item No. | Name | W (mm) | H (mm) | Overall (mm) | Colour | Material |
|---|---|---|---|---|---|---|---|
| 60 | 31190 | 60mm Horizontal 90° elbow | 60 | 60 | 134 × 134 × 61 | Yellow | PVC/ABS |
| 60 | 38192 | 60mm Horizontal 90° elbow cover | 60 | — | 135 × 135 × 7.5 | Yellow | PVC/ABS |
| 120 | 31390 | 120mm Horizontal 90° elbow | 120 | 100 | 258 × 258 × 118 | Yellow | PVC/ABS |
| 120 | 38392 | 120mm Horizontal 90° elbow cover | 120 | — | 262 × 262 × 36 | Yellow | PVC/ABS |
| 240 | 31690 | 240mm Horizontal 90° elbow | 240 | 100 | 277 × 377 × 119 | Yellow | PVC/ABS |
| 240 | 38692 | 240mm Horizontal 90° elbow cover | 240 | — | 310 × 310 × 17.5 | Yellow | PVC/ABS |
| 360 | 31890 | 360mm Horizontal 90° elbow | 360 | 100 | 493 × 493 × 118 | Yellow | PVC/ABS |
| 360 | 38892 | 360mm Horizontal 90° elbow cover | 360 | — | 425.5 × 425.5 × 18.4 | Yellow | PVC/ABS |
Horizontal 45° Elbow (connector free) – 120 and 240 series
| Series | Item No. | Name | W (mm) | H (mm) | Overall (mm) | Colour | Material |
|---|---|---|---|---|---|---|---|
| 120 | LL23F | 120mm Horizontal 45° elbow connector free | 120 | 100 | 190 × 193 × 121 | Yellow | PVC/ABS |
| 120 | 38351 | 120mm Horizontal 45° elbow connector free cover | 120 | — | 201 × 195 × 38 | Yellow | PVC/ABS |
| 240 | LL26F | 240mm Horizontal 45° elbow connector free | 240 | 100 | 319.5 × 287 × 121 | Yellow | PVC/ABS |
| 240 | 38651 | 240mm Horizontal 45° elbow connector free cover | 240 | — | 290 × 325 × 40 | Yellow | Metal |
Installation notes
- 2 connectors are needed for installation (60/120/240); the 360 series needs 2 pieces of 360 Type A connector.
- Flame retardant: UL94-V0.
- Available in the 120 and 240 series only.
Dimensions are quoted from the Heizka Fibre Management System catalogue. Specifications are subject to change without notice – please confirm critical dimensions with Heizka before ordering.
Standards & Compliance
- Flame retardancy: UL94-V0 self-extinguishing plastics.
- Material: PVC / ABS mouldings; steel support hardware is electroplated zinc with a powder-coated finish.
- All plastic-based components are specified to be RoHS compliant.
- Colour: high-visibility yellow, identifying the fibre pathway.
- Environment: indoor use in data centres, telecommunication exchanges and equipment rooms.
Turning a Route without Losing Bend Radius
A fibre route changes direction at the end of a cabinet row, around a column or where it crosses from one aisle to the next. If the cable is simply bent over the end of a straight channel, it can be pushed below its minimum bend radius, which adds loss that is hard to find later. The horizontal 90° elbow keeps the turn inside a formed fitting that holds the 30 mm minimum bend radius of the Heizka system, so every turn on the route is controlled.
Elbow and Cover Are Separate Items
Each elbow has its own matching snap-on cover with a separate item number. Order both, or the turn will be left open at the top.
| Raceway size | Elbow | Elbow cover |
|---|---|---|
| 60 mm | 31190 | 38192 |
| 120 mm | 31390 | 38392 |
| 240 mm | 31690 | 38692 |
| 360 mm | 31890 | 38892 |
Further sizes are listed in the technical specifications above.
Horizontal Elbow or Another Fitting?
- Horizontal 90° elbow — the route stays at the same level and turns left or right.
- Up/down elbow — the route changes level, for example dropping from a ceiling run to cabinet-top height.
- Horizontal tee — the route splits into two directions at the same level.
- Horizontal cross — four directions meet, typically at the junction of a main aisle and a row.
Takeoff Tips
- Count turns on the route drawing per raceway size; each turn needs one elbow and one elbow cover.
- Each joint between an elbow and a straight section needs a connector from the matching connector kit.
- Fewer turns mean less installation work and an easier pull for long patch cords, so straighten the route where the room layout allows.
- Support the route close to each elbow with the cross arm hardware.
Back to the Fiber Raceway System.
Typical Applications
- Data centres and server rooms – fibre patch cord routing between racks and rows.
- Telecommunication exchanges and central offices.
- Optical distribution frames (ODF) and fibre cross-connect areas.
- Any installation where fibre must be segregated from copper services and protected end to end.
Download
Catalogue extract for this product, taken from the Heizka Fibre Management System catalogue:
