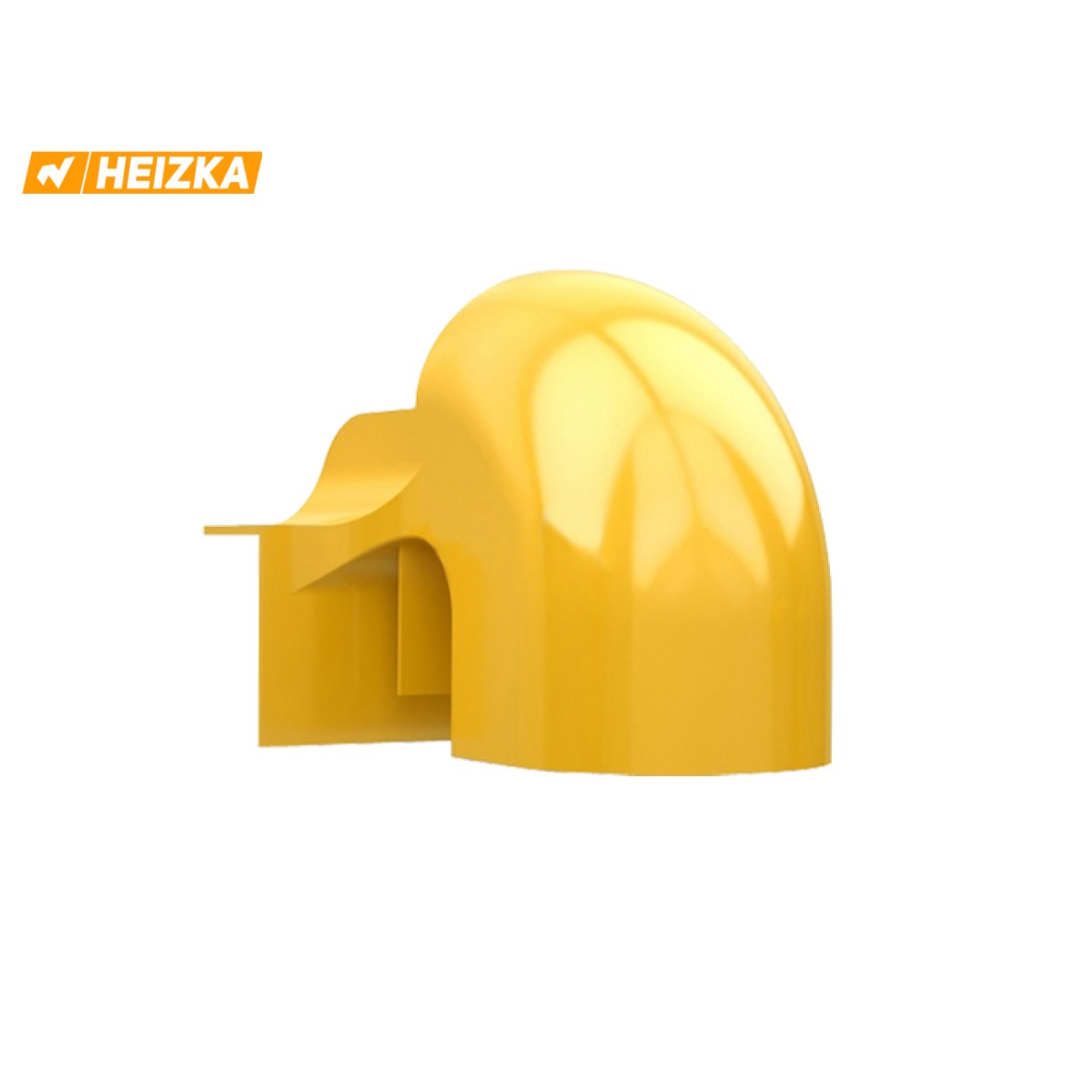

      Heizka yellow PVC fibre raceway trumpet spillout downspout kit
      Structured Cabling System / Fiber Raceway System

      Heizka Fibre Raceway Trumpet Spillout Kit

      Categories: Fiber Raceway System, Structured Cabling System
      • Description

      Overview

      The Heizka Trumpet Spillout Kit protects fibre where it leaves the raceway. The flared, trumpet-shaped mouth limits the bend radius of the cable at the exit point, so patch cords are not kinked or over-bent as they drop out of a spillover junction or off the end of a run.

      The 60 mm kit installs by hand with no tools. The 120 mm and 240 mm kits fix to the channel with T-shape screws and twist head nuts.

      Key Features

      • Limits cable bend radius at the exit – 40 mm on the 60 mm kit, 2 in. (50.8 mm) on the 120 mm kit.
      • Smooth flared mouth protects the cable jacket where fibre leaves the pathway.
      • 60 mm kit installs by hand, no tools needed.
      • Fits spillover junctions, horizontal tee exits and open channel ends.
      • Self-extinguishing plastics – flame-retardant material to UL94-V0.

      Technical Specifications

      SeriesItem No.NameW (mm)H (mm)Overall (mm)ColourMaterial
      60311L060mm Trumpet spillout kit6060128 × 60 × 83YellowPVC/ABS
      120LL23B120mm Trumpet spillout kit120100179 × 70 × 125YellowPVC/ABS
      240311S0240mm Trumpet spillout kitTo be confirmedTo be confirmedTo be confirmedYellowPVC/ABS

      Installation notes

      • 60mm: limits the cable bend radius to 40 mm when exiting from a 60 x 60 exit or from 60 x 60 raceway. Installation by hand, no tools needed.
      • 120mm: limits the cable bend radius to 2 in. (50.8 mm) when exiting from 120 x 100 channel, a 120 x 100 horizontal tee fitting, or a 120 x 100 exit on a 240 x 100 vertical tee. Installation needs T-shape screw (LT5B4) and twist head nut, 4 pieces each.
      • 240mm: limits the cable bend radius to 40 mm when exiting from a 240 x 100 raceway or from a 240 x 100 horizontal tee. Installation needs T-shape screw (LT5B4) and twist head nut, 4 pieces each.
      • Flame retardant: UL94-V0.
      • The dimensions printed against the 240 mm trumpet spillout kit in the source catalogue duplicate those of a 60 mm fitting and are clearly a printing error. They are therefore shown as “to be confirmed” rather than reproduced – please request the correct figures from Heizka.

      Dimensions are quoted from the Heizka Fibre Management System catalogue. Specifications are subject to change without notice – please confirm critical dimensions with Heizka before ordering.

      Standards & Compliance

      • Flame retardancy: UL94-V0 self-extinguishing plastics.
      • Material: PVC / ABS mouldings; steel support hardware is electroplated zinc with a powder-coated finish.
      • All plastic-based components are specified to be RoHS compliant.
      • Colour: high-visibility yellow, identifying the fibre pathway.
      • Environment: indoor use in data centres, telecommunication exchanges and equipment rooms.

      The Drop into the Cabinet Is the Weak Point

      Inside an enclosed raceway the fibre is protected and its bend radius is held by the channel and fittings. The risk comes at the point where patch cords leave the route and fall towards the cabinet: without a guide they bend over a sharp plastic edge, often under the weight of the cords below them. The trumpet spillout replaces that edge with a flared mouth, so the cords curve gradually as they leave the route.

      Sizes and Fixing Method

      Raceway sizePart numberFixing
      60 mm311L0Installs by hand, no tools
      120 mmLL23BFixed to the channel with T-shape screws
      240 mm311S0Fixed to the channel with T-shape screws

      For the 150, 300, 360 and 600 mm series, confirm the spillout option with Heizka before ordering.

      Spillout or Movable Exit?

      • Use a trumpet spillout where the drop position is fixed and planned — typically one per cabinet on a cabinet-top route, or at the end of a branch run.
      • Use a movable exit kit where drop positions may change, because it clamps to the side of the channel and can be moved later.
      • Use an end cap, not a spillout, where a channel ends and no cable leaves.

      Planning the Drops

      1. Mark the cable entry of each cabinet on the floor plan.
      2. Place a spillout on the route directly above each entry, so the cords fall straight into the vertical cable manager.
      3. Count spillouts per raceway size; the 60 mm branch routes and the 120/240 mm trunks use different part numbers.
      4. Check that the cords below the spillout are supported inside the cabinet, so their weight does not pull on the bend at the mouth.

      Related Products

      • 60 × 60 raceway, 120 series and 240 series channels.
      • Cabinet top support for routes that run along the cabinet row.

      Back to the Fiber Raceway System.

      Typical Applications

      • Data centres and server rooms – fibre patch cord routing between racks and rows.
      • Telecommunication exchanges and central offices.
      • Optical distribution frames (ODF) and fibre cross-connect areas.
      • Any installation where fibre must be segregated from copper services and protected end to end.

      Download

      Catalogue extract for this product, taken from the Heizka Fibre Management System catalogue:

      Download datasheet (PDF)
