Overview

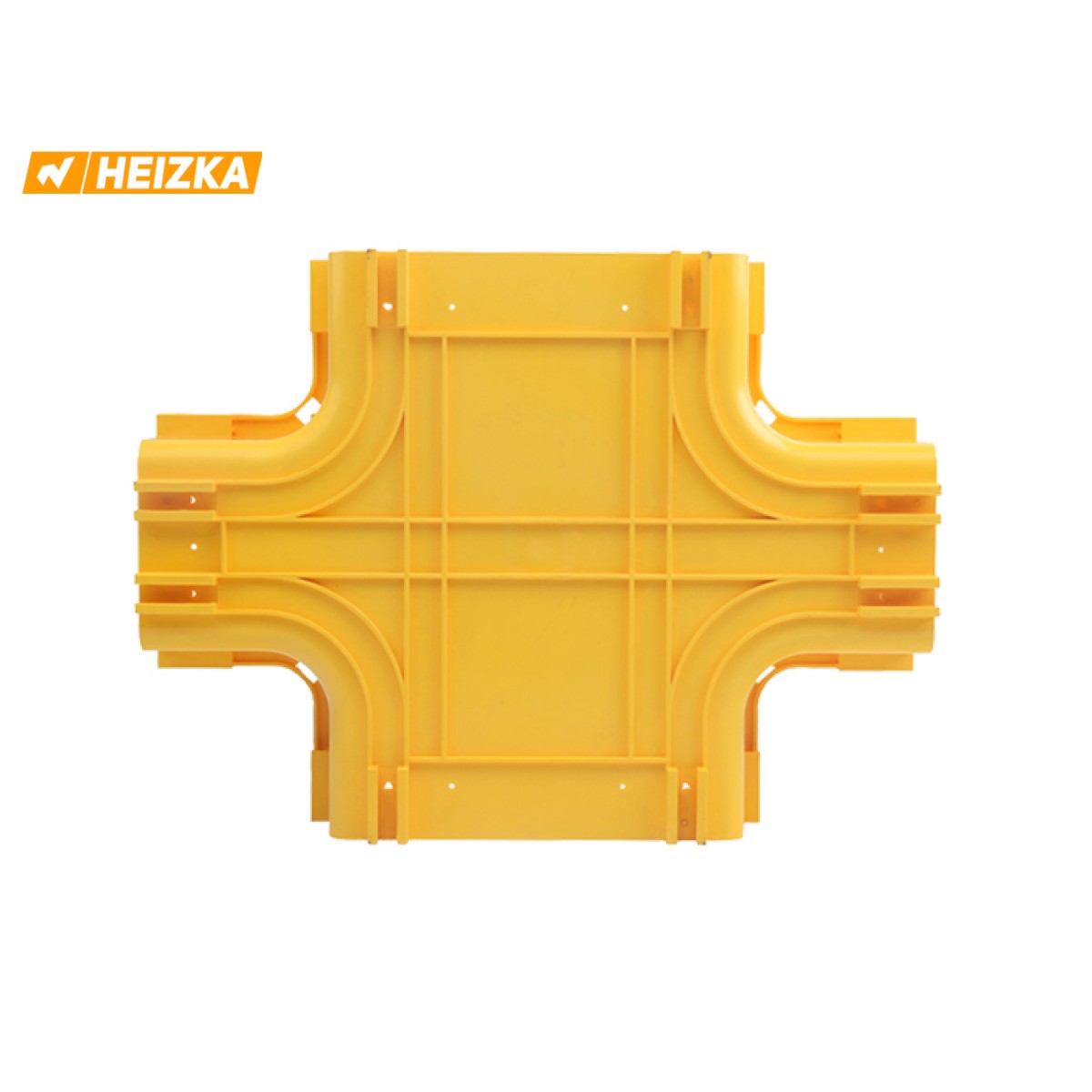

The Heizka Horizontal Cross forms a four-way horizontal intersection, with two exits of the same size in addition to the main run. It is used where two fibre pathways meet at right angles, typically at the intersection of a backbone route and a distribution route.
The cross attaches to channel and/or fittings with the matching connector kits and is closed by a snap-on cover.
Key Features
- Four-way 90° horizontal intersection with two same-size exits.
- Available across the 60, 120, 240 and 360 mm series.
- Bend-radius control – the moulded profile keeps fibre patch cords within their minimum bend radius through the fitting.
- Self-extinguishing plastics – flame-retardant material to UL94-V0.
- Toolless or low-tool assembly – joins to channel and other fittings with the matching Heizka connector kits.
- High-visibility yellow – keeps the fibre pathway clearly segregated from copper services.
- Matching snap-on cover – the fitting is fully enclosed once the cover is fitted (where a cover is listed).
Technical Specifications
| Series | Item No. | Name | W (mm) | H (mm) | Overall (mm) | Colour | Material |
|---|---|---|---|---|---|---|---|
| 60 | 31130 | 60mm Horizontal cross | 60 | 60 | 201 × 201 × 61 | Yellow | PVC/ABS |
| 60 | 38142 | 60mm Horizontal cross cover | 60 | — | 205 × 205 × 7.5 | Yellow | PVC/ABS |
| 120 | 31330 | 120mm Horizontal cross | 120 | 100 | 356 × 356 × 118 | Yellow | PVC/ABS |
| 120 | 38344 | 120mm Horizontal cross cover | 120 | — | 360 × 360 × 36 | Yellow | PVC/ABS |
| 240 | 31630 | 240mm Horizontal cross | 240 | 100 | 476 × 476 × 119 | Yellow | PVC/ABS |
| 240 | 38644 | 240mm Horizontal cross cover | 240 | — | 480 × 480 × 37 | Yellow | PVC/ABS |
| 360 | 31830 | 360mm Horizontal cross | 360 | 100 | 590 × 590 × 118 | Yellow | PVC/ABS |
| 360 | 38844 | 360mm Horizontal cross cover | 360 | — | 606 × 606 × 37 | Yellow | PVC/ABS |
Installation notes
- 4 connectors are needed for installation (60/120/240); the 360 series needs 4 pieces of 360 Type A connector.
- Flame retardant: UL94-V0.
- The 60 mm cover item number (38142) was read from a scanned catalogue page at reduced confidence and should be verified with Heizka before it is treated as authoritative.
Dimensions are quoted from the Heizka Fibre Management System catalogue. Specifications are subject to change without notice – please confirm critical dimensions with Heizka before ordering.
Standards & Compliance
- Flame retardancy: UL94-V0 self-extinguishing plastics.
- Material: PVC / ABS mouldings; steel support hardware is electroplated zinc with a powder-coated finish.
- All plastic-based components are specified to be RoHS compliant.
- Colour: high-visibility yellow, identifying the fibre pathway.
- Environment: indoor use in data centres, telecommunication exchanges and equipment rooms.
Typical Applications
- Data centres and server rooms – fibre patch cord routing between racks and rows.
- Telecommunication exchanges and central offices.
- Optical distribution frames (ODF) and fibre cross-connect areas.
- Any installation where fibre must be segregated from copper services and protected end to end.
Download
Catalogue extract for this product, taken from the Heizka Fibre Management System catalogue:
