Overview

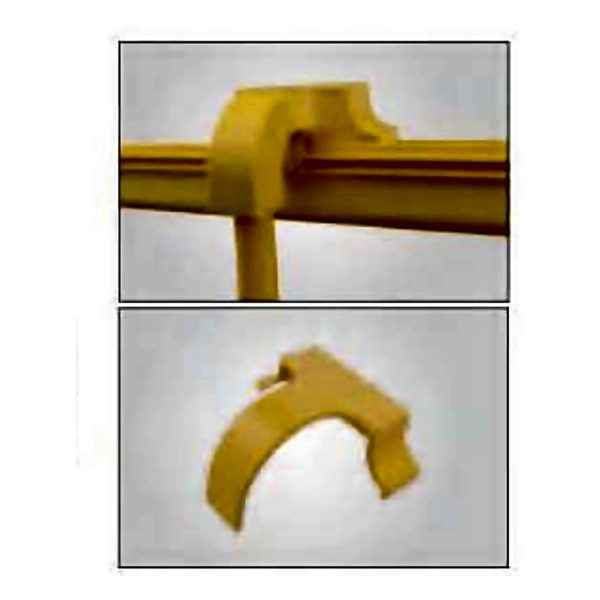

The Heizka Movable Exit Kit assembles onto the side of the channel and lets cable spill out of the run at any point along its length. Because the exit clamps to the channel rather than replacing a section of it, it can be positioned – and later repositioned – to suit the cabinets actually installed beneath the pathway.
Exits are available for 60, 90, 120 and 130 mm cable drops, and can be combined with the matching corrugated pipe and pipe fixer to carry the drop all the way down to the equipment.
Key Features
- Positioned anywhere along the run and moved later as the room layout changes.
- Exit sizes for 60, 90, 120 and 130 mm cable drops.
- Corrugated pipe (Φ50 / Φ90 mm) and pipe fixer available to guide the drop to the cabinet.
- Optional steel cable exit bracket reinforces the exit.
- 60 mm B kit installs by hand, no tools needed.
- Self-extinguishing plastics – flame-retardant material to UL94-V0.
Technical Specifications
| Series | Item No. | Name | W (mm) | H (mm) | Overall (mm) | Colour | Material |
|---|---|---|---|---|---|---|---|
| 60 | LC230 | 60mm Movable exit A kit | 60 | 60 | 256 × 208 × 141 | Yellow | PVC/ABS |
| 60 | 38163 | 60mm Movable exit kit cover | 60 | — | 260 × 222 × 143 | Yellow | PVC/ABS |
| 60 | LC250 | 60mm Movable exit B kit | 45 | 60 | 89 × 134 × 78 | Yellow | PVC/ABS |
| 60 | 38055 | 60mm Movable exit kit cover | 45 | — | 145 × 140 × 80 | Yellow | PVC/ABS |
| 90 | LC220 | 90mm Movable exit kit | 90 | 170 | 186 × 170 × 130 | Yellow | PVC/ABS |
| 90 | 38162 | 90mm Movable exit kit cover | 90 | — | 108 × 103 × 153 | Yellow | PVC/ABS |
| 120 | LC240 | 120mm Movable exit kit | 120 | 170 | 250 × 211 × 146 | Yellow | PVC/ABS |
| 120 | 38064 | 120mm Movable exit kit cover | 120 | — | 258 × 260 × 149 | Yellow | PVC/ABS |
| 130 | LC210 | 130mm Movable exit kit | 130 | 170 | 226 × 170 × 130 | Yellow | PVC/ABS |
| 130 | 38161 | 130mm Movable exit kit cover | 130 | — | 148 × 103 × 153 | Yellow | PVC/ABS |
Accessories
| Item No. | Name | Spec | Overall (mm) | Colour | Material / finish |
|---|---|---|---|---|---|
| LCK02 | Pipe fixer | 50 | 56 × 52 × 23 | Yellow | PVC/ABS |
| LCR50 | Corrugated pipe | Φ50 mm | Φ50 | Yellow | PVC/ABS |
| LCR90 | Corrugated pipe | Φ90 mm | Φ90 | Yellow | PVC/ABS |
| 33040 | Cable exit bracket | — | — | — | Electroplated zinc, powder coated |
Installation notes
- The 60mm A kit, 90mm, 120mm and 130mm kits assemble onto 120 x 100, 240 x 100 and 360 x 100 channel.
- The 60mm B kit assembles onto 60 x 60 channel; installation by hand, no tools needed.
- Most kits need T-shape screw (LT5B4) and twist head nut for installation.
- The 90mm kit spills into a movable exit without corrugated pipe.
- Pipe fixer is necessary for installation of the corrugated pipes; pipe length is available on demand.
- The cable exit bracket reinforces the movable cable exit.
- Flame retardant: UL94-V0.
Dimensions are quoted from the Heizka Fibre Management System catalogue. Specifications are subject to change without notice – please confirm critical dimensions with Heizka before ordering.
Standards & Compliance
- Flame retardancy: UL94-V0 self-extinguishing plastics.
- Material: PVC / ABS mouldings; steel support hardware is electroplated zinc with a powder-coated finish.
- All plastic-based components are specified to be RoHS compliant.
- Colour: high-visibility yellow, identifying the fibre pathway.
- Environment: indoor use in data centres, telecommunication exchanges and equipment rooms.
Built for Moves, Adds and Changes
In a live data hall the cabinet layout rarely stays the same for long. New racks arrive, others are moved, and patch cords must drop out of the route at points nobody planned on day one. A fixed fitting such as a tee means cutting into the route. The movable exit kit instead clamps onto the side of the channel, so a new exit can be added — or an existing one moved — at any point along the run, without removing the channel or disturbing the fibre already inside.
Movable Exit, Trumpet Spillout or Tee?
| Fitting | Best used when |
|---|---|
| Movable exit kit | Cable must leave the route at a point that may change later, or at a point added after installation. |
| Trumpet spillout kit | Cable drops from the route into a cabinet at a fixed, planned position, and the flared mouth should guide it down. |
| Horizontal tee / vertical tee | A full branch route of channel leaves the main run. |
Sizes and Covers
Exit kits and their covers carry separate item numbers, so order them as a pair. Examples from the published list:
- 60 mm: LC230 (movable exit A kit) with cover 38163; LC250 (movable exit B kit) with cover 38055.
- 90 mm: LC220 with cover 38162.
- 120 mm: LC240 with cover 38064.
Further sizes are listed in the technical specifications above. Exit sizes such as 90 mm do not all match a channel width, so confirm with Heizka which exit fits your channel and the cable bundle that will pass through it.
Installation Tips
- Place each exit directly above the cabinet’s cable entry so the cord drops straight down without a sharp bend.
- Keep the 30 mm minimum bend radius of the system in mind for cords leaving the exit; route them into vertical cable managers rather than letting them hang free.
- Fit the matching cover on every exit to keep dust out of the route.
- Record the position of each exit on the as-built drawing so later changes can be planned.
Back to the Fiber Raceway System or see the 120 series and 240 series channels.
Typical Applications
- Data centres and server rooms – fibre patch cord routing between racks and rows.
- Telecommunication exchanges and central offices.
- Optical distribution frames (ODF) and fibre cross-connect areas.
- Any installation where fibre must be segregated from copper services and protected end to end.
