The Voltrix S2KL (Tower) and RS2KL (Rack 2U) are 2 kVA / 1.8 kW high-frequency online double-conversion (VFI) UPS systems with a long-backup external battery bank (48V/72V). With 0 ms transfer time, input power factor correction of 0.99 at full load and a wide 60~300V (half load) 176~300V (full load) input window, they protect servers, network equipment and control systems against outages, sags, surges and frequency variation.

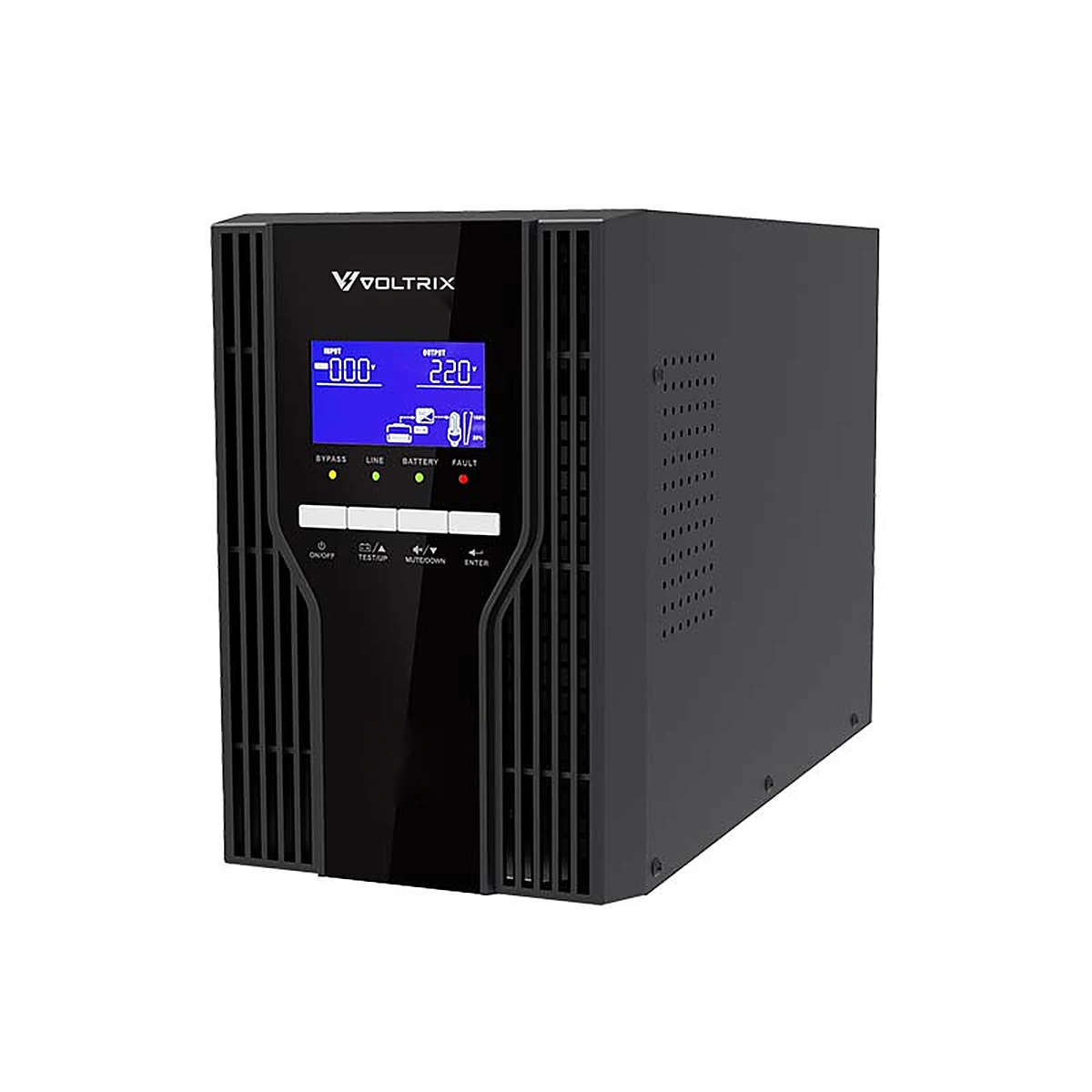

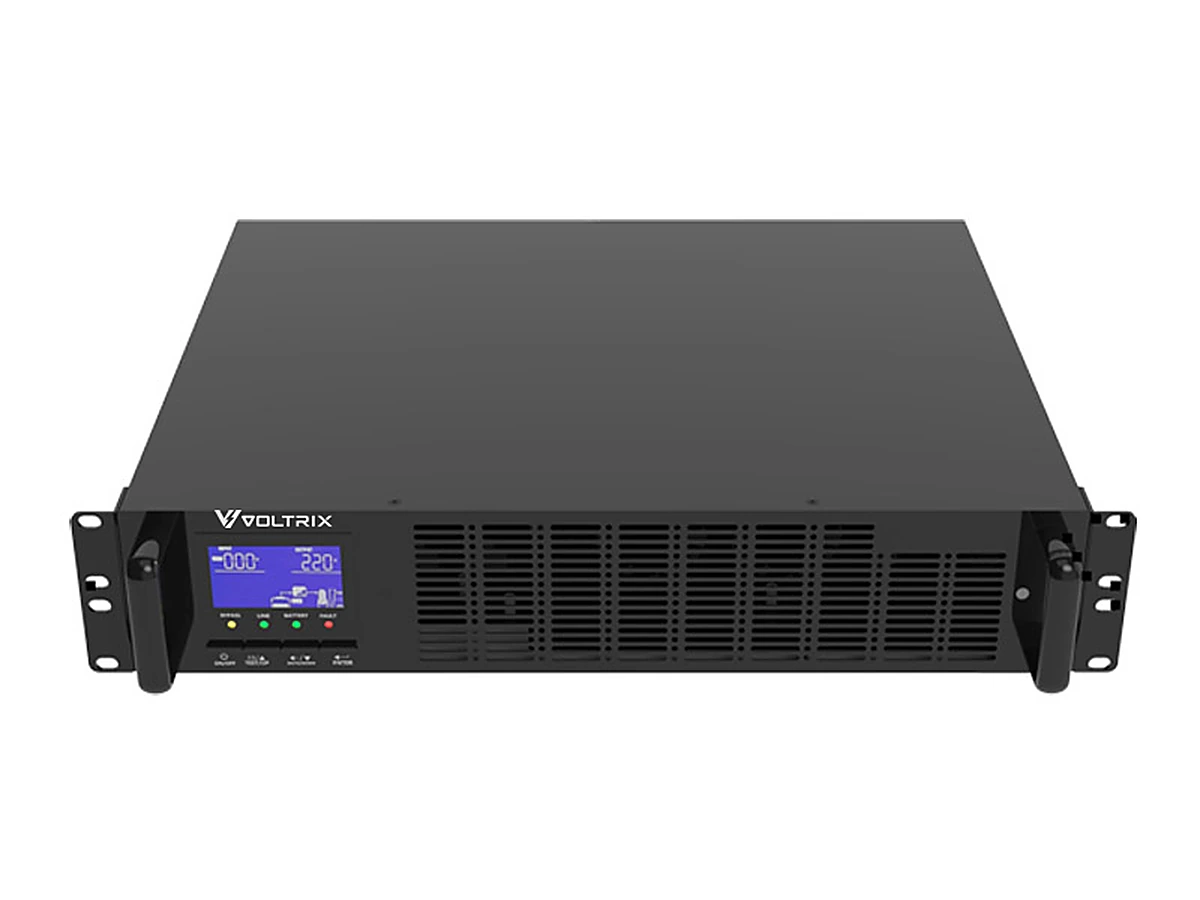

Both form factors share identical electrical performance; choose Tower for desktop or floor placement, or the 2U Rack model for standard 19-inch cabinets. The external battery module is ordered separately and sized to the autonomy required — runtime is therefore set by the battery bank, not by the UPS. A standard built-in-battery model (S2K / RS2K) is available separately.
Technical Specifications — S2KL / RS2KL — 2 kVA / 1.8 kW
| INPUT | |
|---|---|
| Topology | VFI Online Dbl. Conv. |
| Input Config | 1Φ L/N+PE |
| Nominal Input V | 110~127V or 220~240V |
| Input Range | 60~300V (half load) 176~300V (full load) |
| Input Freq. | 40 ~ 70 Hz |
| Input PF | 0.99 @ Full |
| OUTPUT | |
| Output Voltage | 230 VAC (220/240/208V) or 120 VAC |
| Volt. Regulation | ±1% |
| Freq (Sync Mode) | 46~54 Hz 57~63 Hz |
| Freq (Bat. Mode) | 50Hz±0.05 60Hz±0.05 |
| THDv Lin./Non-lin. | 2% / 6% |
| Waveform | Pure Sine |
| Transfer Line↔Bat | 0 ms |
| Transfer Inv↔Bypass | < 4 ms |
| EFFICIENCY | |
| AC → AC | 90% |
| ECO Mode | 95% |
| Battery Mode | 88% |
| BATTERY & CHARGER | |
| Battery Type | VRLA Lead Acid |
| Battery Config. | Ext. 48V/72V |
| Float Charge V | 54.6/81.8 V |
| Backup @50% Load | Per EBM |
| Recharge Time | Per EBM |
| Max Rech. Current | 6 A |
| Display / Comm. | LED/LCD RS232/USB |
| PHYSICAL | |
| Form Factor | Tower / Rack 2U |
| Tower W×H×L (mm) | 145×220×400 |
| Rack W×H×D (mm) | 438×88×350 |
| Net Weight (kg) | 10.6 |
| ENVIRONMENT | |
| Operating Temp. | 0~+40°C |
| Humidity | 5~97% RH Non-cond. |
Key Features
- Online double-conversion (VFI) topology — 0 ms transfer, pure sine wave output
- Input power factor 0.99 at full load — reduces wiring and energy costs
- Wide input range 60~300V (half load) 176~300V (full load), 40 ~ 70 Hz — generator compatible
- Long-backup external battery — max charging current 6 A; runtime set by the external battery module
- AC→AC efficiency 90%, ECO mode 95%
- LED/LCD display with RS232 + USB communication
When 2 kVA Needs More Than a Few Minutes
The S2KL and RS2KL are the long-backup version of the 2 kVA / 1.8 kW S2K. The power stage is the same, but the internal battery is replaced by a connection for an external battery string and a stronger charger. Typical projects are a security control room that must keep recording during a long outage, a small telecom node, a hospital nurse-call head-end, or a server cabinet where a generator is not available and staff need time to react.
Battery String Options
The listed external battery voltages are 48 V and 72 V. With 12 V blocks that means a string of 4 or 6 blocks (48 ÷ 12 and 72 ÷ 12, calculated). A higher string voltage stores more energy for the same block size, which is one way to extend runtime without a larger battery footprint per block.
| Example string | Nominal energy (calculated) | Minimum recharge time at 6 A (calculated) |
|---|---|---|
| 4 × 12 V / 65 Ah | 3,120 Wh | about 11 h |
| 6 × 12 V / 65 Ah | 4,680 Wh | about 11 h |
| 6 × 12 V / 100 Ah | 7,200 Wh | about 17 h |
These are worked examples, not standard Voltrix packs. Runtime is listed as “Per EBM” because it depends on the battery module you select; confirm the actual runtime with the battery maker’s discharge data at your real load.
S2KL versus S2K at a Glance
- Battery: external 48V/72V string on the S2KL; internal 4×12V/7AH on the S2K.
- Charger: up to 6 A on the S2KL against 1.5 A on the S2K, so large battery banks recharge in a practical time.
- Weight: 10.6 kg against 17.5 kg (6.9 kg lighter, calculated), because no batteries are inside.
- Tower size: 145 × 220 × 400 mm against 145 × 220 × 328 mm. The rack version stays 2U.
Installation Notes
- Plan the battery cabinet position at the same time as the UPS; external VRLA banks are heavy and need a floor or rack rated for them.
- Fit DC protection and cable sized for the discharge current between UPS and battery, to local code.
- Keep batteries in the 0 to +40 °C range listed for the UPS, and preferably cooler, to protect service life.
Frequently Asked Questions
Does the S2KL have any backup without the external battery?
No. Backup comes only from the connected battery string.
Is there a lithium alternative?
Yes, the C2K-Li / R2K-Li uses a LiFePO4 battery. Compare both before choosing.
More options in the VRLA UPS range.
Ordering Information
| Voltrix Model | Form Factor | Apparent / Active Power | Battery | Part Number |
|---|---|---|---|---|
| S2KL | Tower | 2 kVA / 1.8 kW | Ext. 48V/72V Battery | VTX-S2KL |
| RS2KL | Rack 2U | 2 kVA / 1.8 kW | Ext. 48V/72V Battery | VTX-RS2KL |
Downloads
Certifications & Warranty
Designed and manufactured under ISO 9001:2015. CE (EU Declaration of Conformity), IEC/EN 62040-1 (UPS Safety), IEC/EN 62040-2 (UPS EMC — Class C2), RoHS 2011/65/EU. 2-year UPS system warranty, return-to-base, parts and labour; 1-year VRLA battery warranty. 24/7 technical support with response within 4 hours.
Specifications subject to change without notice. Backup times are indicative and depend on load, temperature, battery age and discharge history. Voltrix is a registered brand of Heizka. All trademarks are property of their respective owners.
