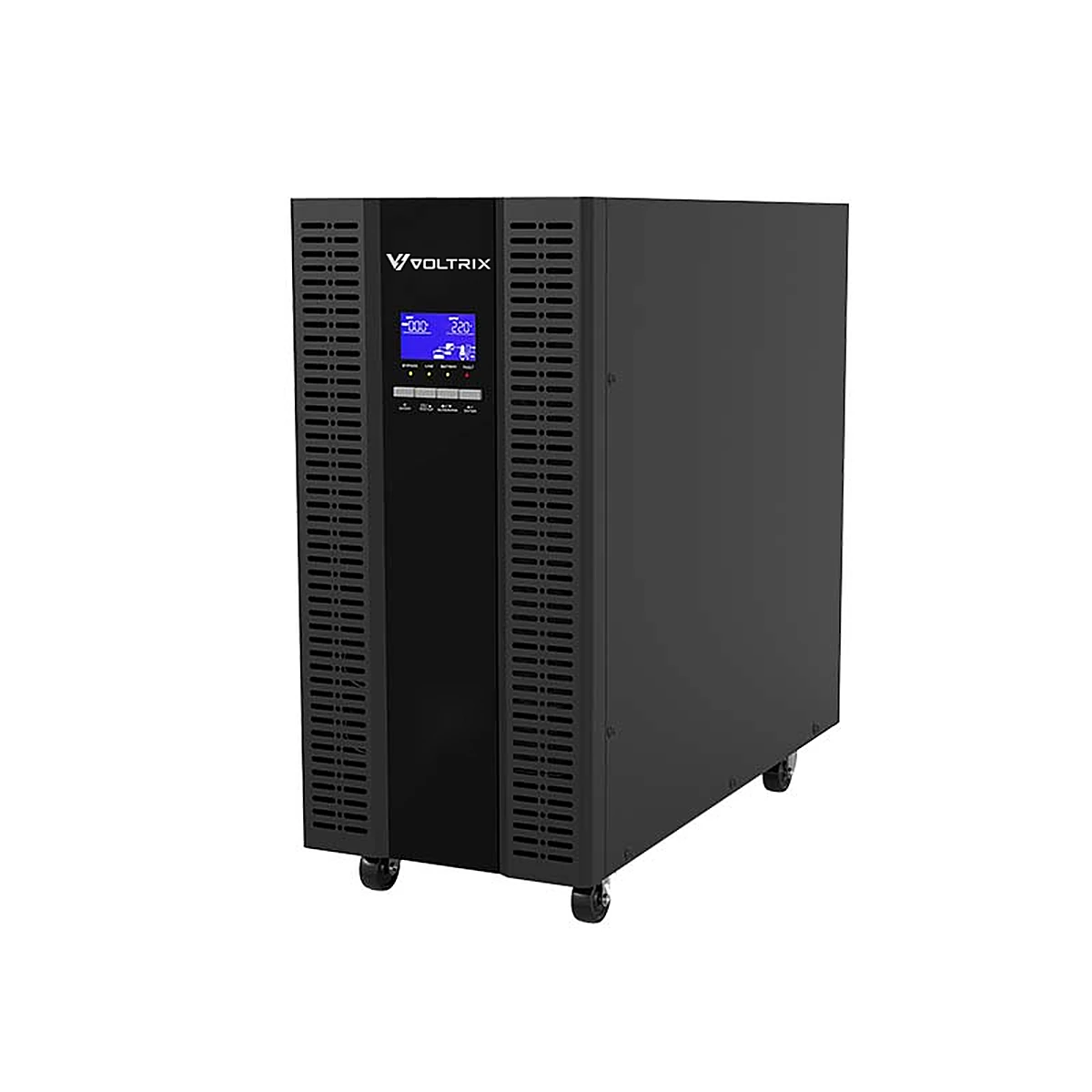

The Voltrix S20K is a 20 kVA / 18 kW high-frequency online double-conversion (VFI) tower UPS with a built-in maintenance-free VRLA battery (32×12V/7AH). It accepts a three-phase (or single-phase) input and delivers a single-phase output, with an ultra-wide 156 ~ 520 VAC input window, 0 ms transfer time and input power factor above 0.99 — making it suitable for generator sets and unstable grid environments.
Conformal-coating construction protects the electronics in dusty, humid and corrosive environments. A long-backup external-battery-cabinet variant (S20KL) is available separately.
Technical Specifications — S20K — 20 kVA / 18 kW
| INPUT | |
|---|---|
| Topology | Online Double Conversion (VFI) |
| Input Config | 3Φ (L1/L2/L3/N)+PE or 1Φ L/N+PE |
| Nominal Input V | 380 / 400 / 415 VAC (3Φ) |
| Input Voltage Range | 156 ~ 520 VAC |
| Bypass Voltage Range | 310 ~ 450 VAC |
| Input Freq. Range | (40~70) Hz ±0.5 Hz |
| OUTPUT | |
| Output Voltage | 220 / 230 / 240 VAC ±2% |
| Output Freq (Sync) | 50/60 Hz ±4 Hz |
| Output Freq (Fix) | 50/60 Hz ±1% |
| THDv (Lin. / Non-lin.) | < 2% / < 7% |
| Transfer Time | 0 ms |
| Input Power Factor | > 0.99 |
| Output Waveform | Pure Sine Wave |
| EFFICIENCY | |
| Line / ECO / Battery | 94% / >95% / 93% |
| BATTERY & CHARGER | |
| Battery Type | VRLA Sealed Lead Acid |
| Battery Config. | 32×12V/7AH (int.) |
| Battery Voltage | 192 VDC (240V charge) |
| Backup @50% / 100% | ≥ 6 min / ≥ 1.5 min |
| Recharge Time / Curr. | ~5h to 90% / 1.5 A |
| Communication | RS232 + USB / SNMP (opt.) |
| PHYSICAL | |
| Form Factor | Tower |
| Dimensions W×D×H (mm) | 299×698×700 |
| Net / Gross Weight | 88.7 kg / 124.7 kg |
| Acoustic Noise | < 55 dB(A) |
| ENVIRONMENT | |
| Operating Temp. | 0 ~ +40°C |
| Humidity | 5 ~ 97% RH (Non-condensing) |
Key Features
- Online double-conversion (VFI) topology — 0 ms transfer, pure sine wave output
- Three-phase or single-phase input, single-phase output — 3Φ (L1/L2/L3/N)+PE or 1Φ L/N+PE
- Ultra-wide input range 156 ~ 520 VAC, (40~70) Hz ±0.5 Hz — generator compatible
- Input power factor > 0.99
- Efficiency (line / ECO / battery): 94% / >95% / 93%
- Conformal coating — anti-corrosion for harsh environments
- RS232 + USB with SNMP (optional)
Three-Phase In, Single-Phase Out
The S20K takes a three-phase supply (L1/L2/L3/N + PE, 380/400/415 VAC) or a single-phase supply, and delivers single-phase output at 220/230/240 VAC. This arrangement spreads the input load across three phases at the switchboard while feeding single-phase IT and low-voltage equipment, which is the normal case in a small server room, a telecom room or a building control centre.
What the Numbers Mean on Site
| Item | Value | Basis |
|---|---|---|
| Input current, 3-phase 400 V, full load | about 27.9 A per phase | 18 kW ÷ 94% ÷ 0.99 ÷ (√3 × 400 V), calculated |
| Input current, 1-phase 230 V, full load | about 84 A | 18 kW ÷ 94% ÷ 0.99 ÷ 230 V, calculated |
| Output current, 230 V, full load | about 78 A | 18 kW ÷ 230 V, calculated |
| Internal battery energy | about 2,688 Wh nominal | 32 × 12 V × 7 Ah, calculated |
| Backup | ≥ 6 min at 50% / ≥ 1.5 min at 100% | published |
Input and output current figures exclude battery charging current and are for planning only. Cable, breaker and distribution sizing must follow local electrical code and the final design.
Output Distribution
Because all 18 kW leave the UPS on one phase, the output cable and the downstream distribution board carry close to 80 A at full load. Plan a dedicated UPS output board with individually protected circuits for each rack or PDU, so one fault does not drop the whole room.
Room and Floor Planning
- The cabinet measures 299 × 698 × 700 mm (W × D × H) and weighs 88.7 kg net (124.7 kg gross). Check the floor rating and the access route for delivery.
- Acoustic noise is listed below 55 dB(A), suitable for a technical room next to an office area.
- Keep the room within the listed environmental range; battery life falls quickly at high temperature.
- RS232 and USB are standard; SNMP is optional for remote monitoring.
Related Models
- S20KL — same 20 kVA rating with an external 192 V battery cabinet for long runtime.
- S15K — 15 kVA model for slightly smaller rooms.
- S10K / RS10K — 10 kVA.
Frequently Asked Questions
Can the S20K run on a single-phase supply?
Yes, single-phase L/N+PE input is listed. Note the much higher input current in that case.
Is the output three-phase?
No. Output is single-phase.
See the VRLA UPS range and the data center infrastructure overview.
Ordering Information
| Voltrix Model | Form Factor | Apparent / Active Power | Battery | Part Number |
|---|---|---|---|---|
| S20K | Tower | 20 kVA / 18 kW | Internal VRLA (32×12V/7AH) | VTX-S20K |
Downloads
Certifications & Warranty
Designed and manufactured under ISO 9001:2015. CE (EU Declaration of Conformity), IEC/EN 62040-1 (UPS Safety), IEC/EN 62040-2 (UPS EMC — Class C2), RoHS 2011/65/EU. 2-year UPS system warranty, return-to-base, parts and labour; 1-year VRLA battery warranty. 24/7 technical support with response within 4 hours.
Specifications subject to change without notice. Backup times are indicative and depend on load, temperature, battery age and discharge history. Voltrix is a registered brand of Heizka. All trademarks are property of their respective owners.
