Overview

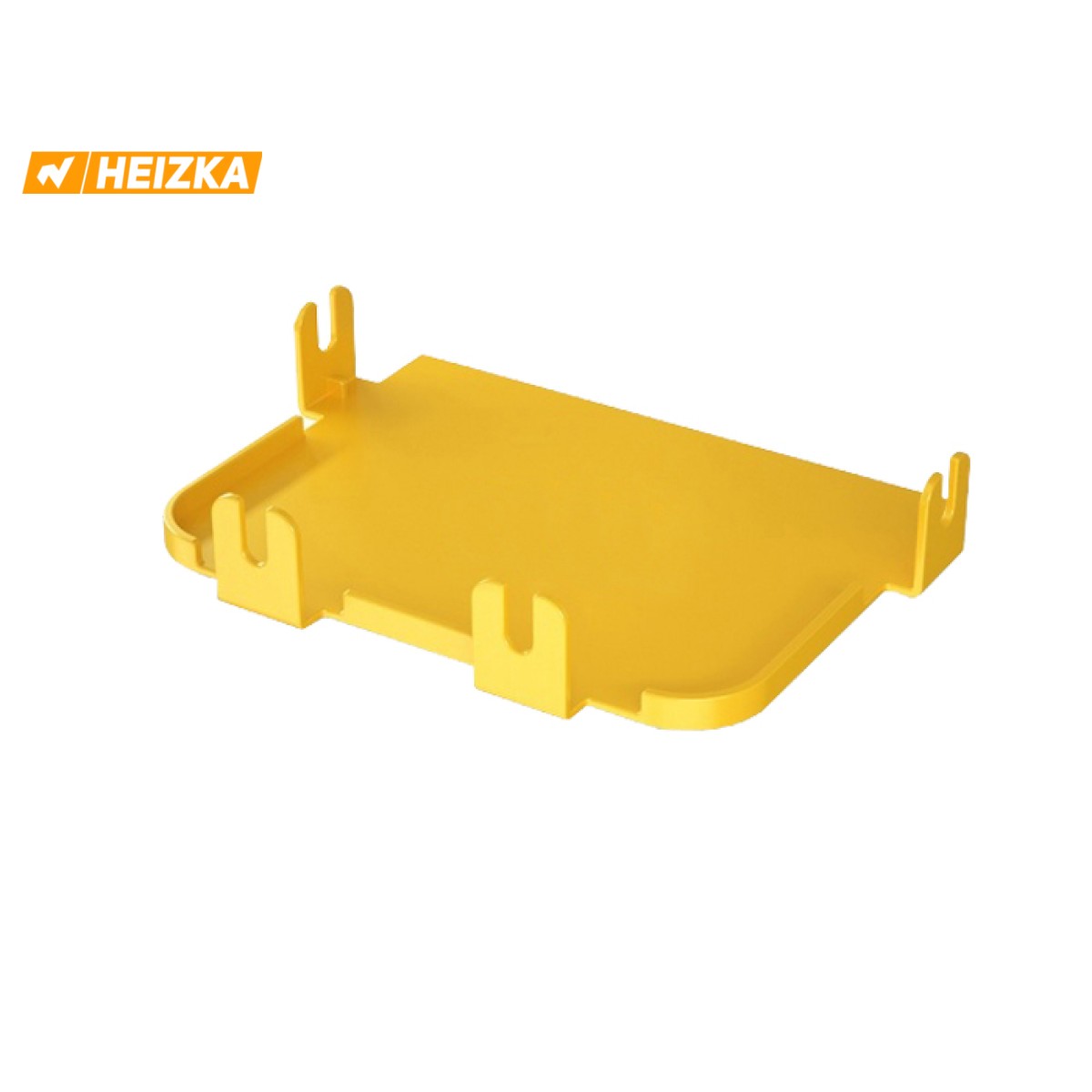

The Heizka End Cap Kit closes off the open end of a channel or fitting, finishing the run neatly and preventing dust ingress and accidental damage to the fibre at the termination point.
End caps are supplied for every raceway size in the system, from 60 × 60 mm through to 600 × 100 mm.
Key Features
- Closes the open ends of channel and fittings.
- Available across the 60, 120, 240, 360 and 600 mm series.
- Gives the run a finished appearance and keeps dust out of the pathway.
- Self-extinguishing plastics – flame-retardant material to UL94-V0.
- High-visibility yellow to match the rest of the system.
Technical Specifications
| Series | Item No. | Name | W (mm) | H (mm) | Overall (mm) | Colour | Material |
|---|---|---|---|---|---|---|---|
| 60 | 311G0 | 60mm End cap | 60 | 60 | 68 × 68 × 27 | Yellow | PVC/ABS |
| 120 | LL23A | 120mm End cap kit | 120 | 100 | 135 × 116 × 25 | Yellow | PVC/ABS |
| 240 | LL26A | 240mm End cap kit | 240 | 100 | 270 × 25 × 116 | Yellow | PVC/ABS |
| 360 | LL28A | 360mm End cap kit | 360 | 100 | 390 × 26.5 × 115 | Yellow | PVC/ABS |
| 600 | 312G0 | 600mm End cap kit | 600 | 100 | 641 × 22.5 × 121 | Yellow | PVC |
Installation notes
- 360 series: installation needs T-shape screw and twist head nut, 5 pieces each.
- 600 series: installation needs T-shape screw and twist head nut, 7 pieces each.
- Flame retardant: UL94-V0.
Dimensions are quoted from the Heizka Fibre Management System catalogue. Specifications are subject to change without notice – please confirm critical dimensions with Heizka before ordering.
Standards & Compliance
- Flame retardancy: UL94-V0 self-extinguishing plastics.
- Material: PVC / ABS mouldings; steel support hardware is electroplated zinc with a powder-coated finish.
- All plastic-based components are specified to be RoHS compliant.
- Colour: high-visibility yellow, identifying the fibre pathway.
- Environment: indoor use in data centres, telecommunication exchanges and equipment rooms.
Typical Applications
- Data centres and server rooms – fibre patch cord routing between racks and rows.
- Telecommunication exchanges and central offices.
- Optical distribution frames (ODF) and fibre cross-connect areas.
- Any installation where fibre must be segregated from copper services and protected end to end.
Download
Catalogue extract for this product, taken from the Heizka Fibre Management System catalogue:
