Overview

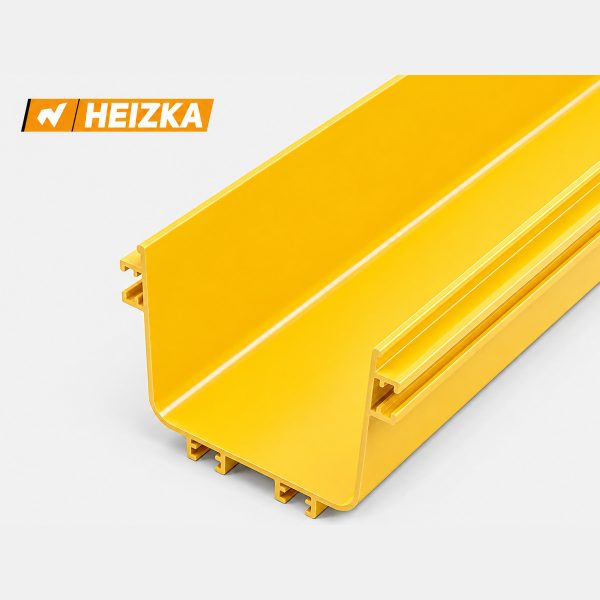

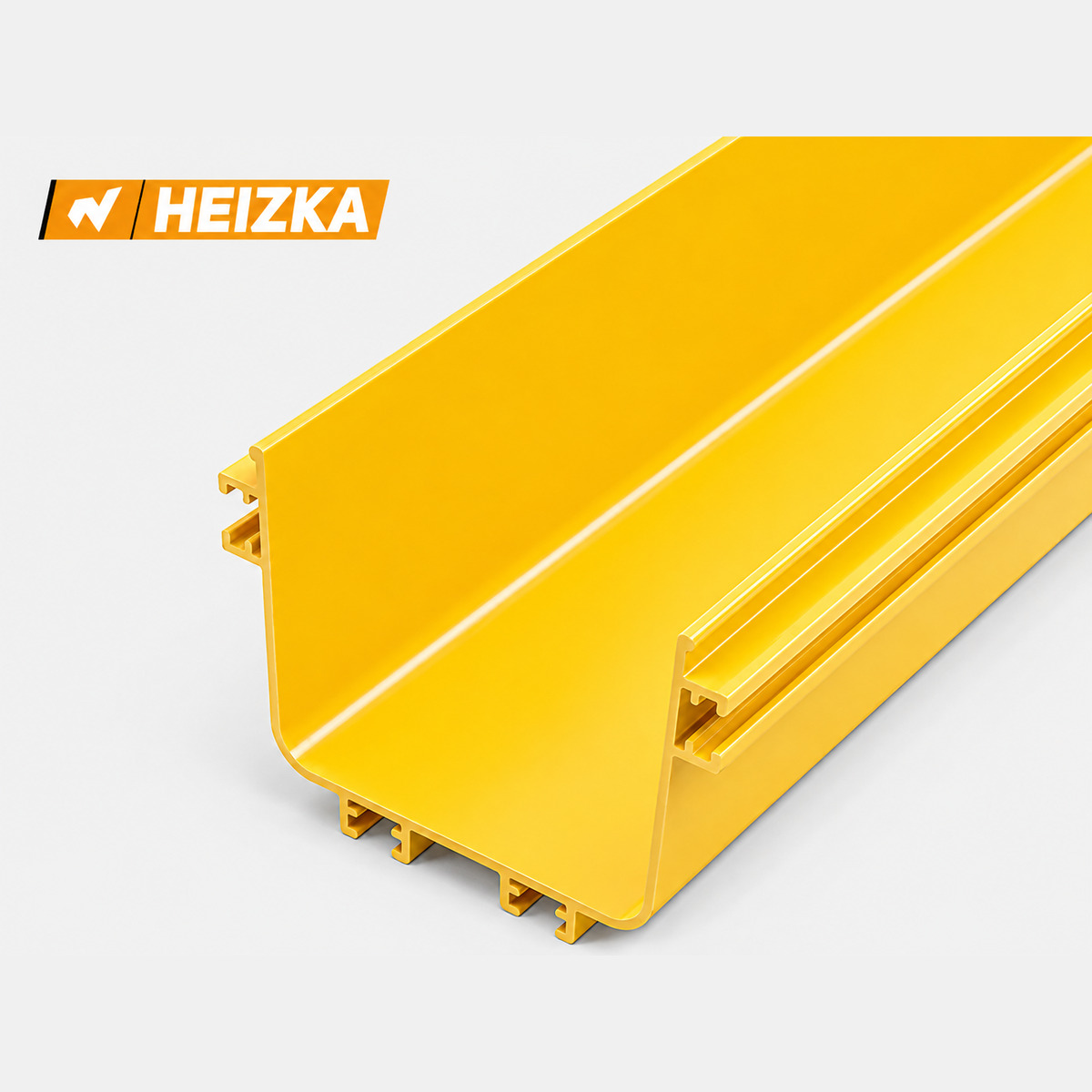

The Heizka 240 Series Straight Section (3A600) is the core channel of the Heizka Fibre Management System – an enclosed plastic raceway designed to protect and route fibre optic patch cords and cable assemblies between network cabinets, optical distribution frames (ODF) and other terminal devices.
With a 240 × 100 mm cross-section and a standard length of 2000 mm, it carries cables horizontally throughout the system and accepts the matching cover and the full range of Heizka 240 series fittings. Smooth internal surfaces and generous bend radii keep fibre within its minimum bend radius, while the high-visibility yellow finish clearly segregates the fibre pathway from copper services.
Key Features
- Enclosed protection – a fully enclosed raceway shields fragile fibre patch cords from compression, dust and accidental damage.
- Bend-radius control – channel and fittings are shaped to maintain the 30 mm minimum bend radius generally specified for fibre.
- Fast installation – connector kits join channel and fittings quickly; no screws are required for normal installation.
- Self-extinguishing plastics – flame-retardant material to UL94-V0, reducing risk to staff, equipment and buildings in a fire.
- Flexible mounting – mounts from walls, ladder rack, ceiling, raised-floor support brackets, floors, or the top of equipment racks and frames.
- Easy to extend – sections and fittings can be added or re-routed later without removing existing fibre or shutting the system down.
- High-visibility yellow – clearly identifies the fibre pathway and keeps it segregated from copper cabling.
A full range of matching fittings (connectors, 90° horizontal elbows, up/down elbows, horizontal and vertical tees, cutting-in tees, horizontal crosses and end-cap kits) is available for the 240 series.
Technical Specifications
| Item No. | Name | W (mm) | H (mm) | L (mm) | Overall (mm) | Colour | Material |
|---|---|---|---|---|---|---|---|
| 3A600 | 240 Straight section | 240 | 100 | 2000 | 278 x 118 x 2000 | Yellow | PVC |
| 38611 | 240 Straight section cover | 240 | — | — | 274 x 12 x 2000 | Yellow | PVC |
Dimensions are quoted from the Heizka Fibre Management System catalogue. Specifications are subject to change without notice – please confirm critical dimensions with Heizka before ordering.
Standards & Compliance
- Flame retardancy: UL94-V0 self-extinguishing plastics.
- Material: PVC channel and cover; fittings in PVC/ABS. ABS is available as a raw-material option for a higher-class finish.
- All plastic-based components are specified to be RoHS compliant.
- Environment: indoor use in data centres, telecommunication exchanges and equipment rooms.
Typical Applications
- Data centres and server rooms – fibre patch cord routing between racks and rows.
- Telecommunication exchanges and central offices.
- Optical distribution frames (ODF) and fibre cross-connect areas.
- Any installation where fibre must be segregated from copper services and protected end to end.
Download
Catalogue extract for this product, taken from the Heizka Fibre Management System catalogue:
